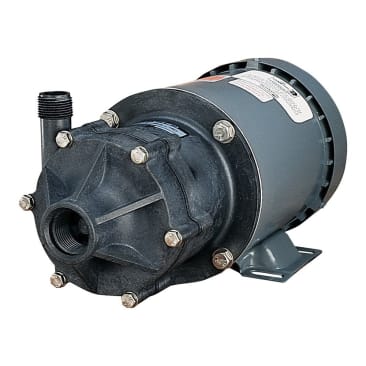

LITTLE GIANT 586604 Image 2

LITTLE GIANT 586604 TE-6-MD-HC

MFR Part #: 586604
SKU #: 1154078
Brand: Little Giant®
UPC: 010121866041
Little GIANT® 586604 Magnetic Drive Pump, 38 gpm, 4.7 to 11.6 A, 115/230 VAC, 1/2 hp
12 Month
cCSAus Certified | UR Listed

Little GIANT® Magnetic Drive Pump, Model: TE-6-MD-HC, 1 in Suction, 3/4 in Discharge, 38 gpm, 4.7 to 11.6 A, 115/230 VAC, 1/2 hp, 1 ph -Phase, 50/60 Hz, 2850 to 3450 rpm Speed, 51 ft Max Feet of Head, 835 W, 200 deg F Max Temperature, 22.1 psi Working Pressure, Polyphenylene Sulfide Impeller, Polyphenylene Sulfide Body, 16.3 in L x 8.8 in W x 8.6 in H

The TE-6-MD-HC is designed to transfer highly corrosive acids, alkalis, solvents, brine, plating solutions, sterile solutions, and other highly corrosive chemicals and solutions compatible with the pump's material construction. The pump also utilizes pure carbon bushing in the impeller to enable the pump to run dry for periods up to 8 hr.

Product Details

Little GIANT® Magnetic Drive Pump, Model: TE-6-MD-HC, 1 in Suction, 3/4 in Discharge, 38 gpm, 4.7 to 11.6 A, 115/230 VAC, 1/2 hp, 1 ph -Phase, 50/60 Hz, 2850 to 3450 rpm Speed, 51 ft Max Feet of Head, 835 W, 200 deg F Max Temperature, 22.1 psi Working Pressure, Polyphenylene Sulfide Impeller, Polyphenylene Sulfide Body, 16.3 in L x 8.8 in W x 8.6 in H

The TE-6-MD-HC is designed to transfer highly corrosive acids, alkalis, solvents, brine, plating solutions, sterile solutions, and other highly corrosive chemicals and solutions compatible with the pump's material construction. The pump also utilizes pure carbon bushing in the impeller to enable the pump to run dry for periods up to 8 hr.

Attributes

Amperage Rating: 4.7 to 11.6 A
Body Material: Polyphenylene Sulfide
Dimensions: 16.3 in L x 8.8 in W x 8.6 in H
Discharge Size: 3/4 in
Flow Rate: 38 gpm
Frequency Rating: 50/60 Hz
HP Rating: 1/2 hp
Impeller Material: Polyphenylene Sulfide
Maximum Feet of Head: 51 ft
Maximum Temperature: 200 deg F
Model: TE-6-MD-HC
Phase: 1 ph
Power Rating: 835 W
Speed Rating: 2850 to 3450 rpm
Suction Size: 1 in
Voltage Rating: 115/230 VAC
Working Pressure: 22.1 psi

Features

  • 1/2 hp TEFC split phase motor
  • Glass filled polyphenylene sulfide volute and backplate
  • 1.1 specific gravity
  • Fluoroelastomer (FKM) O-ring
  • Ceramic thrust washers and shaft
  • Run dry capability up to 8 hr
