LITTLE GIANT 589002 1-MD
MFR Part #: 589002
SKU #: 1154093
Brand: Little Giant®
UPC: 010121890022

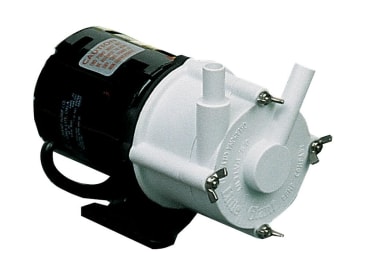

LittleGIANT® 589002 MD Magnetic Drive Pump, 3 gpm Flow Rate, 0.5 in Inlet x 0.5 in Outlet, 115 VAC, 150 deg F
1 Year
Designed for In-Line, Non-Submersible Use
Product Details
Attributes
Features
Resources
LittleGIANT®, 589002, Magnetic Drive Pump, Series: MD, 3 gpm Flow Rate, 0.5 in Inlet, 0.5 in Outlet, 60 W Power, 115 VAC, 0.79 A, 60 Hz Frequency, 4.6 psi Maximum, Polypropylene Impeller, 150 deg F, Plastic/Thermoplastic, 5 in H x 4 in W x 8.3 in L Dimensions
Amperage Rating:
.79 A
Dimensions:
5 in H x 4 in W x 8.3 in L
Flow Rate:
3 gpm
Frequency Rating:
60 Hz
Impeller Type:
Polypropylene
Inlet Size:
.5 in
Material:
Plastic/Thermoplastic
Maximum Pressure:
4.6 psi
Outlet Size:
.5 in
Power Rating:
60 W
Series:
MD
Temperature Rating:
150 deg F
Voltage Rating:
115 VAC
- 1/70 hp open FC motor
- Glass-filled polypropylene magnet housing
- Glass-filled polypropylene volute
- 1.1 specific gravity
- Nitrile O-ring
- Titanium thrust washers and shaft
Product Details
LittleGIANT®, 589002, Magnetic Drive Pump, Series: MD, 3 gpm Flow Rate, 0.5 in Inlet, 0.5 in Outlet, 60 W Power, 115 VAC, 0.79 A, 60 Hz Frequency, 4.6 psi Maximum, Polypropylene Impeller, 150 deg F, Plastic/Thermoplastic, 5 in H x 4 in W x 8.3 in L Dimensions
Attributes
Amperage Rating: .79 A
Dimensions: 5 in H x 4 in W x 8.3 in L
Flow Rate: 3 gpm
Frequency Rating: 60 Hz
Impeller Type: Polypropylene
Inlet Size: .5 in
Material: Plastic/Thermoplastic
Maximum Pressure: 4.6 psi
Outlet Size: .5 in
Power Rating: 60 W
Series: MD
Temperature Rating: 150 deg F
Voltage Rating: 115 VAC
Features
- 1/70 hp open FC motor
- Glass-filled polypropylene magnet housing
- Glass-filled polypropylene volute
- 1.1 specific gravity
- Nitrile O-ring
- Titanium thrust washers and shaft
