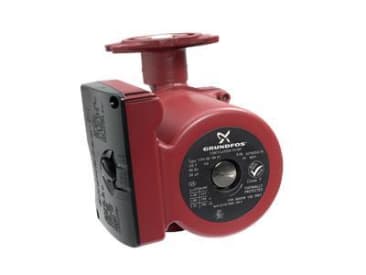

GRUNDFOS 52722512 1/6HP 115V CI 3SP CP W/CV UPS26-99FC
Product Details
Attributes
Features
Resources
Grundfos Circulator Pump, Series: UPS, 33 gpm, 28.87 ft Maximum Head, 197 W, 115 V AC, 1.3 to 1.8 A, 60 Hz, 1 ph, 145 psi Maximum, 3380 rpm Motor, 104 deg F, 6 in W x 6-1/2 in H
The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid.
- Ceramic shaft and radial bearings
- Carbon axial bearing
- Stainless steel rotor can and bearing plate
- Corrosion resistant impeller, composite, PES
- Cast iron pump housing
- 1 ph motor, no additional motor protection is required
Product Details
Grundfos Circulator Pump, Series: UPS, 33 gpm, 28.87 ft Maximum Head, 197 W, 115 V AC, 1.3 to 1.8 A, 60 Hz, 1 ph, 145 psi Maximum, 3380 rpm Motor, 104 deg F, 6 in W x 6-1/2 in H
The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid.
Attributes
Features
- Ceramic shaft and radial bearings
- Carbon axial bearing
- Stainless steel rotor can and bearing plate
- Corrosion resistant impeller, composite, PES
- Cast iron pump housing
- 1 ph motor, no additional motor protection is required
