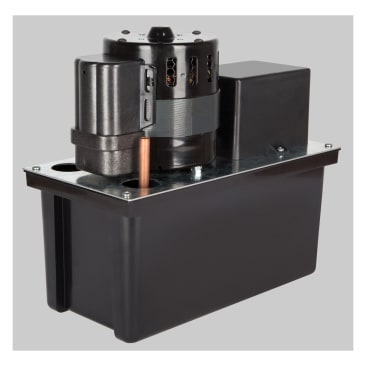

LITTLE GIANT 553245 Image 1

LITTLE GIANT 553245 VCL-45ULS

MFR Part #: 553245
SKU #: 1153847
Brand: Little Giant®
UPC: 010121532458
Little Giant® 553245 Large Tank Condensate Removal Pump, 450 gph Flow Rate, 1-1/8 in Inlet x 3/8 in Barb Outlet, 45 ft Shutoff Head, 93 W Power Rating, Import
1 Year
Float (Solid Polymer) Activated Switch for Automatic High-Level Water Detection (Overflow Detection Switch) and 1/5 hp Motor
For removal of condensate from an air conditioner, high efficiency gas furnace condensation and condensing boilers
cCSAus Certified

Little Giant® Condensate Removal Pump, Large Tank, 450 gph, 1-1/8 in Inlet, 3/8 in Barb Outlet, 45 ft Shutoff Head, 93 W Power, 230 V 50/60 Hz 1 A Electrical Rating, 19.5 psi Maximum, Polypropylene Impeller, 1 gal Reservoir, 6 ft Power Cord, Solid Polymer Float, 120 deg F, ABS, 12.11 in L x 6 in W x 10.85 in H Dimensions, Import

Product Details

Little Giant® Condensate Removal Pump, Large Tank, 450 gph, 1-1/8 in Inlet, 3/8 in Barb Outlet, 45 ft Shutoff Head, 93 W Power, 230 V 50/60 Hz 1 A Electrical Rating, 19.5 psi Maximum, Polypropylene Impeller, 1 gal Reservoir, 6 ft Power Cord, Solid Polymer Float, 120 deg F, ABS, 12.11 in L x 6 in W x 10.85 in H Dimensions, Import

Attributes

Country Of OriginMexico
Dimensions12.11 in L x 6 in W x 10.85 in H
Electrical Ratings230 V 50/60 Hz 1 A
Flow Rate450 gph
Inlet Size1-1/8 in
Outlet Size3/8 in Barb
TypeLarge Tank
Cord Type6 ft Power
Domestic/ImportImport
Float MaterialSolid Polymer
Impeller TypePolypropylene
MaterialABS
Maximum Pressure19.5 psi
Power Rating93 W
Reservoir Capacity1 gal
Shutoff Head45 ft
Temperature Rating120 deg F

Features

  • Galvanized steel tank cover
  • ABS tank, motor cover and volute
  • Stainless steel shaft
  • Snap-action switch
  • Thermal overload protection
  • 3/8 in discharge copper tube
  • 450 gph at 1 ft H
