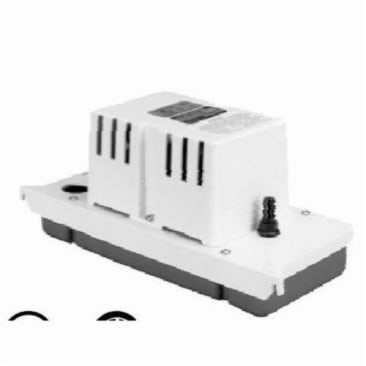

LITTLE GIANT 554200 VCC-20ULS
MFR Part #: 554200
SKU #: 1153851
Brand: Little Giant®
UPC: 010121542006
Please note this item is discontinued (order fulfillment will depend on stock availability): Little Giant® 554200 VCC-20ULS Automatic Condensate Removal Pump, 80 gph Flow Rate, 20 ft Shutoff Head, 93 W Power Rating, Import
Safety Switch
For high-efficiency gas furnace condensate
CSA Certified | UL Listed
Product Details
Attributes
Features
Resources
Little Giant® Condensate Removal Pump, Automatic, Series: VCC-20ULS, 80 gph Flow Rate, 20 ft Shutoff Head, 93 W Power, 1/30 hp Electrical Rating, 8.7 psi Maximum, Glass-Filled Polypropylene Impeller, 3/10 gal Reservoir, Power Cord, Wall Mounting, 120 deg F, ABS, Import
Clearance Items:
Clearance
Country Of Origin:
Mexico
Electrical Ratings:
1/30 hp
Flow Rate:
80 gph
Type:
Automatic
Cord Type:
Power
Domestic/Import:
Import
Impeller Type:
Glass-Filled Polypropylene
Material:
ABS
Maximum Pressure:
8.7 psi
Mounting Type:
Wall
Power Rating:
93 W
Reservoir Capacity:
3/10 gal
Series:
VCC-20ULS
Shutoff Head:
20 ft
Temperature Rating:
120 deg F
- 3/8 in OD barbed discharge size
- 115 V, 60 Hz
- 80 gph at 1 ft head, 70 gph at 5 ft head, 45 gph at 10 ft head
- Housing, cover and volute ABS construction, impeller glass filled polypropylene construction, stainless steel motor shaft
- Low profile compact size, vertical type pump unit, leak-proof, rustproof, ABS tank, stainless steel motor shaft, 3/8 in OD barbed discharge adapter, 6 ft power cord, thermal overload protected
- The VCC is a low profile compact size for applications with limited space
Product Details
Little Giant® Condensate Removal Pump, Automatic, Series: VCC-20ULS, 80 gph Flow Rate, 20 ft Shutoff Head, 93 W Power, 1/30 hp Electrical Rating, 8.7 psi Maximum, Glass-Filled Polypropylene Impeller, 3/10 gal Reservoir, Power Cord, Wall Mounting, 120 deg F, ABS, Import
Attributes
Clearance Items: Clearance
Country Of Origin: Mexico
Electrical Ratings: 1/30 hp
Flow Rate: 80 gph
Type: Automatic
Cord Type: Power
Domestic/Import: Import
Impeller Type: Glass-Filled Polypropylene
Material: ABS
Maximum Pressure: 8.7 psi
Mounting Type: Wall
Power Rating: 93 W
Reservoir Capacity: 3/10 gal
Series: VCC-20ULS
Shutoff Head: 20 ft
Temperature Rating: 120 deg F
Features
- 3/8 in OD barbed discharge size
- 115 V, 60 Hz
- 80 gph at 1 ft head, 70 gph at 5 ft head, 45 gph at 10 ft head
- Housing, cover and volute ABS construction, impeller glass filled polypropylene construction, stainless steel motor shaft
- Low profile compact size, vertical type pump unit, leak-proof, rustproof, ABS tank, stainless steel motor shaft, 3/8 in OD barbed discharge adapter, 6 ft power cord, thermal overload protected
- The VCC is a low profile compact size for applications with limited space
