LITTLE GIANT 521203 1-MA
MFR Part #: 521203
SKU #: 1153818
Brand: Little Giant®
UPC: 010121212039

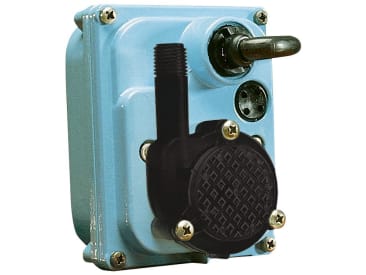

LittleGIANT® 521203 1-MA Oil-Filled Pump, 170 gph Flow Rate, 0.5 in Outlet, 1/200 hp, Thermoplastic/Nitrile Rubber
1 Year
For Commercial, Industrial and Home Applications Including Statuary Fountains, Water Displays, Air Conditioners, Machine Tool Coolants, and Many other Applications Where Liquid Must Be Transferred or Recirculated
UL Listed
Product Details
Attributes
Features
Resources
LittleGIANT®, 521203, Pump, Oil-Filled, Series: 1-MA, 170 gph Flow Rate, 0.5 in Outlet, 1/200 hp, 115 VAC, 1.1 A, 60 Hz Frequency, 3 psi Maximum, Polypropylene Impeller, 120 deg F, Thermoplastic/Nitrile Rubber, 4.25 in H x 3.31 in W x 3.47 in L Dimensions
Amperage Rating:
1.1 A
Dimensions:
4.25 in H x 3.31 in W x 3.47 in L
Flow Rate:
170 gph
Frequency Rating:
60 Hz
Material:
Thermoplastic/Nitrile Rubber
Maximum Pressure:
3 psi
Series:
1-MA
Temperature Rating:
120 deg F
Voltage Rating:
115 VAC
Horsepower:
1/200 hp
Impeller Type:
Polypropylene
Outlet Size:
.5 in
Type:
Oil-Filled
- 1/200 hp, oil-filled direct-drive motor
- 170 gph at 1 in head
- 7 in shutoff
- 115 V with 6 in power cord
- 1/4 in MNPT discharge
- Epoxy coated die-cast aluminum housing
- Oil-filled motor housing
- Screened intake
Product Details
LittleGIANT®, 521203, Pump, Oil-Filled, Series: 1-MA, 170 gph Flow Rate, 0.5 in Outlet, 1/200 hp, 115 VAC, 1.1 A, 60 Hz Frequency, 3 psi Maximum, Polypropylene Impeller, 120 deg F, Thermoplastic/Nitrile Rubber, 4.25 in H x 3.31 in W x 3.47 in L Dimensions
Attributes
Amperage Rating: 1.1 A
Dimensions: 4.25 in H x 3.31 in W x 3.47 in L
Flow Rate: 170 gph
Frequency Rating: 60 Hz
Material: Thermoplastic/Nitrile Rubber
Maximum Pressure: 3 psi
Series: 1-MA
Temperature Rating: 120 deg F
Voltage Rating: 115 VAC
Horsepower: 1/200 hp
Impeller Type: Polypropylene
Outlet Size: .5 in
Type: Oil-Filled
Features
- 1/200 hp, oil-filled direct-drive motor
- 170 gph at 1 in head
- 7 in shutoff
- 115 V with 6 in power cord
- 1/4 in MNPT discharge
- Epoxy coated die-cast aluminum housing
- Oil-filled motor housing
- Screened intake
