LITTLE GIANT 527176 NK-2
MFR Part #: 527176
SKU #: 1153824
Brand: Little Giant®
UPC: 010121271760

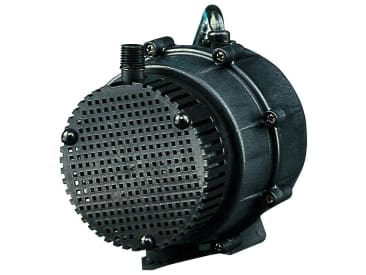

LittleGIANT® 527176 NK-2 Oil-Filled Pump, 325 gph Flow Rate, 0.5 in Outlet, 1/40 hp, Thermoplastic/Polypropylene/Viton
1 Year
For Commercial, Industrial and Home Applications Including Statuary Fountains, Water Displays, Air Conditioners, Machine Tool Coolants, and Many other Applications Where Liquid Must Be Transferred or Recirculated
CSA Certified | UL Listed
Product Details
Attributes
Features
Resources
LittleGIANT®, 527176, Pump, Oil-Filled, Series: NK-2, 325 gph Flow Rate, 0.5 in Outlet, 1/40 hp, 115 VAC, 1.7 A, 60 Hz Frequency, 5.3 psi Maximum, Nylon Impeller, 120 deg F, Thermoplastic/Polypropylene/Viton, 4.6 in H x 4.75 in W x 5 in L Dimensions
Amperage Rating:
1.7 A
Dimensions:
4.6 in H x 4.75 in W x 5 in L
Flow Rate:
325 gph
Frequency Rating:
60 Hz
Material:
Thermoplastic/Polypropylene/Viton
Maximum Pressure:
5.3 psi
Series:
NK-2
Temperature Rating:
120 deg F
Voltage Rating:
115 VAC
Horsepower:
1/40 hp
Impeller Type:
Nylon
Outlet Size:
.5 in
Type:
Oil-Filled
- 1/40 hp, oil-filled motor
- Motor housing with a dielectric lubricant for optimum motor heat transfer
- Lifetime lubrication of the bearings
- Corrosion-resistant nylon body
- 12.3 in maximum lift
- 1/4 in MNPT discharge
Product Details
LittleGIANT®, 527176, Pump, Oil-Filled, Series: NK-2, 325 gph Flow Rate, 0.5 in Outlet, 1/40 hp, 115 VAC, 1.7 A, 60 Hz Frequency, 5.3 psi Maximum, Nylon Impeller, 120 deg F, Thermoplastic/Polypropylene/Viton, 4.6 in H x 4.75 in W x 5 in L Dimensions
Attributes
Amperage Rating: 1.7 A
Dimensions: 4.6 in H x 4.75 in W x 5 in L
Flow Rate: 325 gph
Frequency Rating: 60 Hz
Material: Thermoplastic/Polypropylene/Viton
Maximum Pressure: 5.3 psi
Series: NK-2
Temperature Rating: 120 deg F
Voltage Rating: 115 VAC
Horsepower: 1/40 hp
Impeller Type: Nylon
Outlet Size: .5 in
Type: Oil-Filled
Features
- 1/40 hp, oil-filled motor
- Motor housing with a dielectric lubricant for optimum motor heat transfer
- Lifetime lubrication of the bearings
- Corrosion-resistant nylon body
- 12.3 in maximum lift
- 1/4 in MNPT discharge
