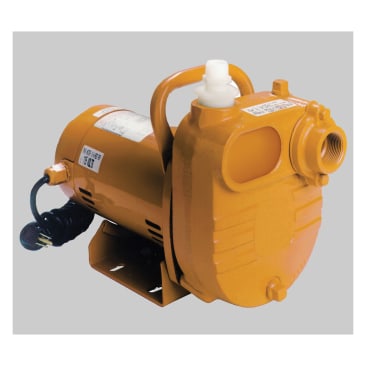

LITTLE GIANT 621814 Image 1

LITTLE GIANT 621814 B50S

MFR Part #: 621814
SKU #: 1154246
Brand: Little Giant®
UPC: 010121126442
Little Giant® 621814 Utility Pump, 45 gpm Flow Rate, 1-1/4 in FNPT Outlet, 1 ph, 1/2 hp, Import
2 Years
Cast Iron Motor and Garden Hose Adapter
Dewatering and Water Transfer

Little Giant® Utility Pump, 45 gpm, 1-1/4 in FNPT Outlet, 50 ft Maximum Head, 112/230 V, 8.4/4.2 A, 1 ph, 120 deg F, 925 W Power, 1/2 hp, Cast Iron Semi-Open Impeller, SJTW 16/3 AWG 8 ft Cord, Ball Bearing, 20 in L x 7.6 in W x 10.5 in H Dimensions, Import

Product Details

Little Giant® Utility Pump, 45 gpm, 1-1/4 in FNPT Outlet, 50 ft Maximum Head, 112/230 V, 8.4/4.2 A, 1 ph, 120 deg F, 925 W Power, 1/2 hp, Cast Iron Semi-Open Impeller, SJTW 16/3 AWG 8 ft Cord, Ball Bearing, 20 in L x 7.6 in W x 10.5 in H Dimensions, Import

Attributes

Flow Rate: 45 gpm
Horsepower: 1/2 hp
Outlet Size: 1-1/4 in FNPT
Amperage Rating: 8.4/4.2 A
Bearing Type: Ball
Cord Type: SJTW 16/3 AWG 8 ft
Dimensions: 20 in L x 7.6 in W x 10.5 in H
Domestic/Import: Import
Impeller Type: Cast Iron Semi-Open
Maximum Head: 50 ft
Phase: 1
Power Rating: 925 W
Temperature Rating: 120 deg F
Voltage Rating: 112/230 V

Features

  • 1/2 hp higher than NEMA service factor, dual compartment motor
  • Cast iron casing with large chamber for self-priming to 25 ft when priming chamber is filled
  • Carbon/ceramic mechanical shaft seals
  • Manual operation
  • 45 gpm at 5 ft H

Resources

Catalog
Specification Sheet
