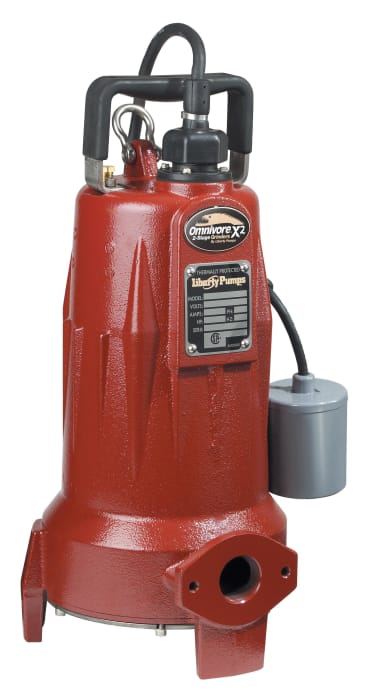

LIBERTY LSGX202A Image 1

LIBERTY LSGX202A GRINDER PUMP 2HP 2-STAGE 208-230V

MFR Part #: LSGX202A
SKU #: 1061990
Brand: Liberty Pumps®
UPC: 671812114881
Liberty Pumps® LSGX202A LSGX200, 39 gpm Max Flow, 10 ft Rated Head, Automatic, 184 ft Max Head, 208 to 230 VAC, 1 Phase
3 Years
Internal Capacitor
Residential and Commercial Sewage Applications
PROP65: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Liberty Pumps®, LSGX202A, 2-Stage High-Head, Series: LSGX200, 39 gpm Maximum, 10 ft Rated Head, Automatic/Non Automatic: Automatic, 1-1/4 in NPT Outlet, 184 ft Maximum Head, 2 hp, 208 to 230 VAC, 15 A Full Load/53 A Locked Rotor, 60 Hz Frequency, 1 ph, 3450 rpm Motor, SJOOW 25 ft Cord, 1 Service Factor, 300 Stainless Steel Impeller, 275 deg F Thermal Overload, Upper Radial/Lower Thrust Bearing, Fiberglass

Liberty's 2-stage LSGX series Omnivore® grinder pumps meet the demanding needs of commercial and residential sewage applications where difficult solids-handling ability is crucial. The LSGX features a superior cutting system made of hardened 440 stainless steel - Rockwell C 58, for shearing solids into small particles prior to being passed to the discharge. The 2-stage design provides high pressure with maximum head capabilities to 185 ft. This performance allows installation of a centrifugal designed grinder where only progressive cavity style designs were previously used. Applications include individual or groups of homes, motels, schools, shopping centers, lakefront developments and systems requiring high pressure sewage pumping. Whether you're replacing an existing grinder pump or customizing a new sewage system, the Omnivore® can be packaged within any number of tank sizes.

Product Details

Liberty Pumps®, LSGX202A, 2-Stage High-Head, Series: LSGX200, 39 gpm Maximum, 10 ft Rated Head, Automatic/Non Automatic: Automatic, 1-1/4 in NPT Outlet, 184 ft Maximum Head, 2 hp, 208 to 230 VAC, 15 A Full Load/53 A Locked Rotor, 60 Hz Frequency, 1 ph, 3450 rpm Motor, SJOOW 25 ft Cord, 1 Service Factor, 300 Stainless Steel Impeller, 275 deg F Thermal Overload, Upper Radial/Lower Thrust Bearing, Fiberglass

Liberty's 2-stage LSGX series Omnivore® grinder pumps meet the demanding needs of commercial and residential sewage applications where difficult solids-handling ability is crucial. The LSGX features a superior cutting system made of hardened 440 stainless steel - Rockwell C 58, for shearing solids into small particles prior to being passed to the discharge. The 2-stage design provides high pressure with maximum head capabilities to 185 ft. This performance allows installation of a centrifugal designed grinder where only progressive cavity style designs were previously used. Applications include individual or groups of homes, motels, schools, shopping centers, lakefront developments and systems requiring high pressure sewage pumping. Whether you're replacing an existing grinder pump or customizing a new sewage system, the Omnivore® can be packaged within any number of tank sizes.

Attributes

Cord TypeSJOOW 25 ft
Country Of OriginUS
Horsepower2 hp
Maximum Flow Rate39 gpm
Maximum Head184 ft
Outlet Size1-1/4 in NPT
Voltage Rating208 to 230 VAC
Amperage Rating15 A Full Load/53 A Locked Rotor
Automatic/Non AutomaticAutomatic
Bearing TypeUpper Radial/Lower Thrust
Frequency Rating60 Hz
Impeller Type300 Stainless Steel
MaterialFiberglass
Motor Speed3450 rpm
Phase1
Rated Head10 ft
SeriesLSGX200
Service Factor1
Temperature Rating275 deg F Thermal Overload
Type2-Stage High-Head

Features

  • One-piece unit body casting
  • Quick connect 25 ft power cord
  • The LSGX Omnivore® two-stage grinder pump features patented V-Slice® cutter technology
  • The hardened stainless steel cutting system provides in excess of 370000 cuts/min and aggressively shreds jeans, shop rags, diapers, sanitary napkins and other difficult solids into a fine slurry
  • A unique open volute design eliminates the cutwater improving solids flow and reducing potential jamming of material in the volute
  • Capacitors are integral to the pump, eliminating the need for an expensive control panel
