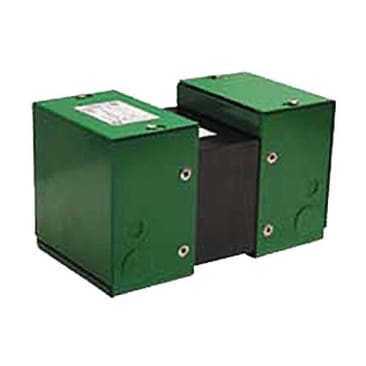

HAMMOND PWR FS250PR 250VA 120X240-12X24 TRANSFORMER
Product Details
Attributes
Features
Resources
HPS, FS250PR, Control Transformer, Dry Enclosed, Series: Fusion™, 240x240 VAC Primary, 12x24 VDC Secondary, 250 VA Power, 50/60 Hz Frequency, 1 ph, 20.8/10.4 A Maximum, Terminal Block Connection, Panel Mounting, 130 deg C Class B Insulation, NEMA 1 Enclosure, 30/40 deg C, 3.9 in L x 6.4 in W x 4.3 in H Dimensions
The HPS Fusion™ line of enclosed transformers are an indoor, cost effective approach ideally suited for single phase, general purpose industrial and light duty loads. Designed specifically for applications such as general purpose enclosed applications used to adjust a supply voltage to match a load requirement, supplying motor control circuits, signal and alarm systems, industrial lighting and circuit isolation and HVAC applications. The HPS Fusion™ general purpose transformer is enclosed in a type 1 enclosure allowing for easy mounting and installation via four mounting slots and two keyhole slots. Easy access to primary and secondary wiring compartment through removable covers, which are molded terminal blocks on units up to 3000 VA and coil face terminations on units over 3000 VA.
- An indoor enclosed control transformer for easy surface mounting
- Molded terminal blocks for primary and secondary connections
- Coil face terminations over 3000 VA or 30 A
- All terminal blocks utilize a combination slot/Phillips #6 screw with a SEMS washer
- Coil face terminations utilize a 1/4-20 UNC x 0.5 in screw and a spring lock washer
- 10 standard voltage groups
- Rugged type 1 enclosure
- Primary and secondary ground screws
- Four wiring and accessory knockouts
- FS-N1 enclosure
Product Details
HPS, FS250PR, Control Transformer, Dry Enclosed, Series: Fusion™, 240x240 VAC Primary, 12x24 VDC Secondary, 250 VA Power, 50/60 Hz Frequency, 1 ph, 20.8/10.4 A Maximum, Terminal Block Connection, Panel Mounting, 130 deg C Class B Insulation, NEMA 1 Enclosure, 30/40 deg C, 3.9 in L x 6.4 in W x 4.3 in H Dimensions
The HPS Fusion™ line of enclosed transformers are an indoor, cost effective approach ideally suited for single phase, general purpose industrial and light duty loads. Designed specifically for applications such as general purpose enclosed applications used to adjust a supply voltage to match a load requirement, supplying motor control circuits, signal and alarm systems, industrial lighting and circuit isolation and HVAC applications. The HPS Fusion™ general purpose transformer is enclosed in a type 1 enclosure allowing for easy mounting and installation via four mounting slots and two keyhole slots. Easy access to primary and secondary wiring compartment through removable covers, which are molded terminal blocks on units up to 3000 VA and coil face terminations on units over 3000 VA.
Attributes
Features
- An indoor enclosed control transformer for easy surface mounting
- Molded terminal blocks for primary and secondary connections
- Coil face terminations over 3000 VA or 30 A
- All terminal blocks utilize a combination slot/Phillips #6 screw with a SEMS washer
- Coil face terminations utilize a 1/4-20 UNC x 0.5 in screw and a spring lock washer
- 10 standard voltage groups
- Rugged type 1 enclosure
- Primary and secondary ground screws
- Four wiring and accessory knockouts
- FS-N1 enclosure
