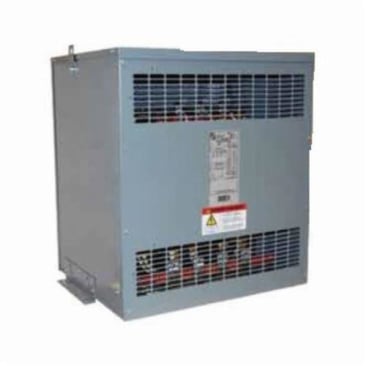

HAMMOND XMK150PB 150KVA 600-120/208 ALUM TRANSFORMER
Product Details
Attributes
Features
Resources
HPS, XMK150PB, Distribution Transformer, Energy Efficient General Purpose, Series: Express™, 600 VAC Primary, 208Y/120 V AC Secondary, 150 kVA Power, 60 Hz Frequency, 3 ph, Lug/Pad Connection, Floor Mounting, CH2-N1 Indoor Enclosure, 40 deg C, 23 in H x 33.5 in W x 31.2 in D Dimensions
The new HPS Express™ series of energy efficient general purpose distribution transformers are ideally suited for commercial applications and provide an efficient and economical solution.
- ST-20 compliant taps
- Cost effective, energy efficient
- Aluminum winding
- Lugs up to 300 kVA
- Type 1 in ANSI 61 gray painted finish, (type 2 when optional sprinkler hood kits are installed)
- High grade non-aging, fully processed silicon steel laminations or better core
- Aluminum windings, with terminations brazed, welded or bolted coil
- Front accessible separate grounding, separate high and low voltage terminations with either lugs or pads
- Floor mounting for all units and wall mounting for units under 600 lbs
- Convection cooled cooling
- Efficiencies are calculated under a linear load profile
- Ideally suited for commercial applications and provide an efficient and economical solutions
- 30 deg C
