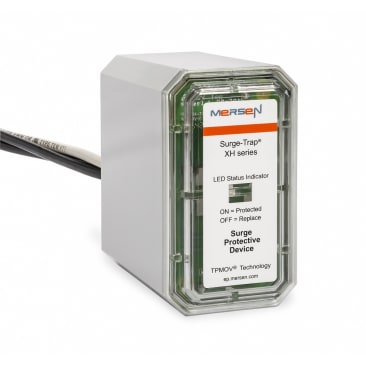

MERSEN STXH240S05 120/240VOLT SPLIT PH TYPE 1 SURGE PROTECT

Mersen Surge-Trap® Surge Protective Device, Split Phase, Series: STXH, 120/240 V AC Electrical Rating, 50/60 Hz Frequency, 2 Pole, 3 Wires, 200 kA Short Circuit, 50 kA Peak Surge Current, 20 kA Nominal Discharge, Modes of Protection: L-N/L-L, LED Indicator, Class: Type 1 SPD, Environmental Conditions: -40 to 85 deg C Operating/Storage Temperature, 0 to 95% Non-Condensing Humidity, NEMA 4X Enclosure, Panel Mounting, Pre-Wire Terminal, Polycarbonate, 1.85 in W x 3.07 in D x 3.22 in H Dimensions

Surge-Trap® STXH is listed UL Type 1 and fully compliant with UL1449 5th Edition, suitable for any 120/240VAC split phase application. Equipped with TPMOV® technology, stands out as the safest option in its class. Compact design, combined with superior performance and reliability, makes it particularly suited for HVAC systems and direct attachment to air conditioning disconnect switches.
