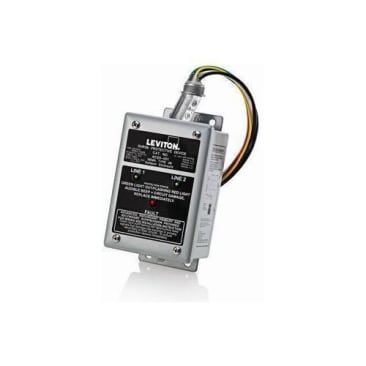

LEVITON 42120-1 120/240V TYPE 2 SURGE PANEL GREY
Product Details
Attributes
Features
Resources
Leviton® Surge Panel Protector, Type 2 3-Wire, Series: 42000, 20 A, 120/240 VAC Electrical Rating, 50/60 Hz Frequency, 1 Phase, 12 AWG Wire, 10 kA Short Circuit, 80 kA Peak Surge Current, Modes of Protection: 4, LED/Noise Filtering/Audible Alarm Indicator, Environmental Conditions: -10 to 60 deg C Operating Temperature, -20 to 85 deg C Storage Temperature, 5 to 95% Non-Condensing Humidity, NEMA 3R Enclosure, Panel Mounting, 7-1/2 in H x 4-1/4 in W x 3-1/4 in D Dimensions, Steel, Gray
Leviton® 32000 and 42000 series panel mounted multi-phase surge protective devices are some of our most popular surge protection panel lines. These cost effective products provide excellent service entrance and branch panel protection for any. Commercial/Industrial application. All models protect against high energy, high voltage transient surges and are made with exceptional durability for long term protection.
- 42000 series incorporates enhanced noise filtering and sine wave tracking for superior protection
- Parallel operated design features 40 mm Dia, metal oxide varistors and EMI/RFI filter circuitry equipped with high voltage rise capacitors for harmonic tolerance
- Equipped with indicator lights and audible alarm for monitoring power and surge suppression status
- 3-phase units are suitable for both WYE and DELTA alternating current systems
- Parallel hardwired via 12 AWG wire connection
- Real time protection status LEDs and audible alarm diagnostics
- Transient voltage surge suppression module
- Without surge counter
Product Details
Leviton® Surge Panel Protector, Type 2 3-Wire, Series: 42000, 20 A, 120/240 VAC Electrical Rating, 50/60 Hz Frequency, 1 Phase, 12 AWG Wire, 10 kA Short Circuit, 80 kA Peak Surge Current, Modes of Protection: 4, LED/Noise Filtering/Audible Alarm Indicator, Environmental Conditions: -10 to 60 deg C Operating Temperature, -20 to 85 deg C Storage Temperature, 5 to 95% Non-Condensing Humidity, NEMA 3R Enclosure, Panel Mounting, 7-1/2 in H x 4-1/4 in W x 3-1/4 in D Dimensions, Steel, Gray
Leviton® 32000 and 42000 series panel mounted multi-phase surge protective devices are some of our most popular surge protection panel lines. These cost effective products provide excellent service entrance and branch panel protection for any. Commercial/Industrial application. All models protect against high energy, high voltage transient surges and are made with exceptional durability for long term protection.
Attributes
Features
- 42000 series incorporates enhanced noise filtering and sine wave tracking for superior protection
- Parallel operated design features 40 mm Dia, metal oxide varistors and EMI/RFI filter circuitry equipped with high voltage rise capacitors for harmonic tolerance
- Equipped with indicator lights and audible alarm for monitoring power and surge suppression status
- 3-phase units are suitable for both WYE and DELTA alternating current systems
- Parallel hardwired via 12 AWG wire connection
- Real time protection status LEDs and audible alarm diagnostics
- Transient voltage surge suppression module
- Without surge counter
