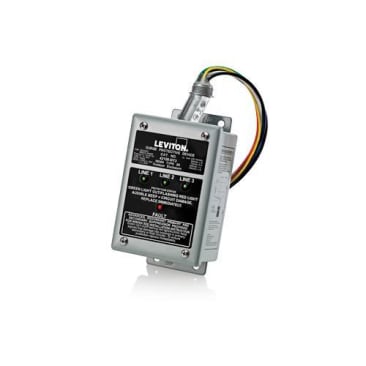

LEVITON 42120-DY3 120/208V 3PH TYPE 2 SURGE PANEL GREY
Product Details
Attributes
Features
Resources
Leviton® Surge Panel, Series: 42000, 30 A, 120/208/220 VAC, 50/60 Hz, 3, 100 kA Short Circuit, 80 kA Peak Surge, Modes of Protection: L-N/L-G/N-G/L-L, LED/Noise Filtering/Audible Alarm Indicator, Environmental Conditions: -10 to 60 deg C Operating Temperature, -20 to 85 deg C Storage Temperature, 5 to 95% Non-Condensing Humidity, UL 94 V-2 Flammability, NEMA 3R, Panel Mount, 7-1/2 in H x 4-1/4 in W x 3-1/4 in D, Steel, Gray
Leviton® 32000 & 42000 series panel mounted multi-phase surge protective devices are some of our most popular surge protection panel lines. These cost-effective products provide excellent service entrance and branch panel protection for any. Commercial/Industrial application. All models protect against high energy, high voltage transient surges and are made with exceptional durability for long term protection.
- 42000 series incorporates enhanced noise filtering and sine wave tracking for superior protection
- Parallel operated design features 40 mm Dia, metal oxide varistors and EMI/RFI filter circuitry equipped with high voltage rise capacitors for harmonic tolerance
- Equipped with indicator lights and audible alarm for monitoring power and surge suppression status
- 3-phase units are suitable for both WYE and DELTA alternating current systems
- Parallel hardwired via 12 AWG wire connection
- Real time protection status LEDs and audible alarm diagnostics
- Transient voltage surge suppression module
- Without surge counter
Product Details
Leviton® Surge Panel, Series: 42000, 30 A, 120/208/220 VAC, 50/60 Hz, 3, 100 kA Short Circuit, 80 kA Peak Surge, Modes of Protection: L-N/L-G/N-G/L-L, LED/Noise Filtering/Audible Alarm Indicator, Environmental Conditions: -10 to 60 deg C Operating Temperature, -20 to 85 deg C Storage Temperature, 5 to 95% Non-Condensing Humidity, UL 94 V-2 Flammability, NEMA 3R, Panel Mount, 7-1/2 in H x 4-1/4 in W x 3-1/4 in D, Steel, Gray
Leviton® 32000 & 42000 series panel mounted multi-phase surge protective devices are some of our most popular surge protection panel lines. These cost-effective products provide excellent service entrance and branch panel protection for any. Commercial/Industrial application. All models protect against high energy, high voltage transient surges and are made with exceptional durability for long term protection.
Attributes
Features
- 42000 series incorporates enhanced noise filtering and sine wave tracking for superior protection
- Parallel operated design features 40 mm Dia, metal oxide varistors and EMI/RFI filter circuitry equipped with high voltage rise capacitors for harmonic tolerance
- Equipped with indicator lights and audible alarm for monitoring power and surge suppression status
- 3-phase units are suitable for both WYE and DELTA alternating current systems
- Parallel hardwired via 12 AWG wire connection
- Real time protection status LEDs and audible alarm diagnostics
- Transient voltage surge suppression module
- Without surge counter
