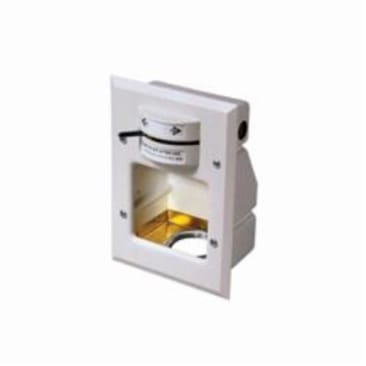

SYMMONS W-602 Image 1

SYMMONS W-602 LAUNDRY MATE WASHING MACHINE VALVE

MFR Part #: W-602
SKU #: 1005934
Brand: Symmons®
UPC: 671256822403
Symmons® W-602 Laundry-Mate® Washing Machine Valve, 1/2 in, C, 100 psi, Brass Body

Symmons® No Lead Washing Machine Valve, Series: Laundry-Mate®, 1/2 in Nominal, C, 100 psi, 250 deg F, Brass Body, 6.875 in L x 10.25 in W x 4.5 in H

The Laundry-Mate control valve has a unique triple-seal packing and features self-adjusting, spring-loaded, non- wearing action. By eliminating constant water pressure shock, Laundry-Mate extends the life of your washing machine hoses. Laundry-Mate installs easily between 2 x 4 in studs on 16 in centers with angle mounting straps (furnished). Copper tubing supplies enter the sides of the unit from above or below and attach to union elbows. Just connect the valve to the union elbows with two screws, install the drain pipe and hoses and screw on the cover - your work is done.

Product Details

Symmons® No Lead Washing Machine Valve, Series: Laundry-Mate®, 1/2 in Nominal, C, 100 psi, 250 deg F, Brass Body, 6.875 in L x 10.25 in W x 4.5 in H

The Laundry-Mate control valve has a unique triple-seal packing and features self-adjusting, spring-loaded, non- wearing action. By eliminating constant water pressure shock, Laundry-Mate extends the life of your washing machine hoses. Laundry-Mate installs easily between 2 x 4 in studs on 16 in centers with angle mounting straps (furnished). Copper tubing supplies enter the sides of the unit from above or below and attach to union elbows. Just connect the valve to the union elbows with two screws, install the drain pipe and hoses and screw on the cover - your work is done.

Attributes

Body Material: Brass
End Style: C
Nominal Size: 1/2 in
Pressure Rating: 100 psi
Temperature Rating: 250 deg F

Features

  • Laundry-Mate supply and drain fixture
  • ON/OFF settings
  • 1/2 in sweat union ell connections
  • 2 in drain connection
