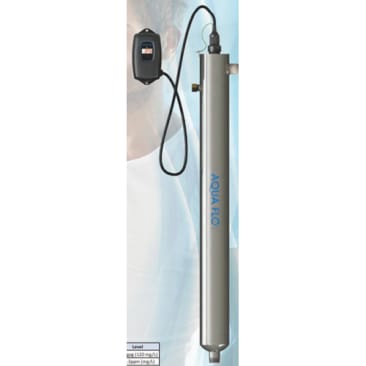

WATERGROUP 40030058 AQUAFLO GEN4-10 UV SYSTEM
MFR Part #: 40030058
SKU #: 1232176
Brand: Canature WaterGroup | Aqua Flo®
UPC: 775600021501
AQUA FLO® 40030058 Residential Filtering System, 20 gpm
1 Year Limited UV Lamps, 1 Year Limited Quartz Sleeves, 3 Year Limited Electronics, 10 Year Limited Reactor Chamber
For multi-use and residential systems
NSF Certified
Product Details
Attributes
Features
Resources
AQUA FLO® Residential Filtering System, 20 gpm Flow Rate, 90 to 265 V, 1 A, 49 W, 50/60 Hz, 36 to 104 deg F
UV Technology provides additional security for your water supply. It is proven to control microbiological (bacteria and virus) issues in water including E.coli, Cryptosporidium and Giardia Lamblia without the use of chemicals.
Flow Rate:20 gpm
Amperage Rating:1 A
Frequency Rating:50/60 Hz
Power Rating:49 W
Temperature Rating:36 to 104 deg F
Voltage Rating:90 to 265 V
- Axial flow, 304 stainless steel, polished reactors
- Visual sight port for lamp on verification
- Designed and manufactured to ASME pressure vessel standards
- Flow rates stated at 95% UVT at a dose of 30 mJ/sq-cm
- User friendly bayonet style lamp connector (quick quarter-turn removal with no extra tools needed)
- True gland seal retaining nut with positive stop
- Reliable, industry proven low pressure (LP) coated UV lamps with ceramic bases for durability and a 9000 hr life
- Constant current electronic controller (one controller for all systems) in a splash-proof case with audible and visual lamp failure indicators
- New tactile selector button
Product Details
AQUA FLO® Residential Filtering System, 20 gpm Flow Rate, 90 to 265 V, 1 A, 49 W, 50/60 Hz, 36 to 104 deg F
UV Technology provides additional security for your water supply. It is proven to control microbiological (bacteria and virus) issues in water including E.coli, Cryptosporidium and Giardia Lamblia without the use of chemicals.
Attributes
Flow Rate: 20 gpm
Amperage Rating: 1 A
Frequency Rating: 50/60 Hz
Power Rating: 49 W
Temperature Rating: 36 to 104 deg F
Voltage Rating: 90 to 265 V
Features
- Axial flow, 304 stainless steel, polished reactors
- Visual sight port for lamp on verification
- Designed and manufactured to ASME pressure vessel standards
- Flow rates stated at 95% UVT at a dose of 30 mJ/sq-cm
- User friendly bayonet style lamp connector (quick quarter-turn removal with no extra tools needed)
- True gland seal retaining nut with positive stop
- Reliable, industry proven low pressure (LP) coated UV lamps with ceramic bases for durability and a 9000 hr life
- Constant current electronic controller (one controller for all systems) in a splash-proof case with audible and visual lamp failure indicators
- New tactile selector button
