AO SMITH 100286022 TJVT-500A 500USG STORAGE TANK
MFR Part #: TJVT500A E00000000 100
SKU #: 1177823
Brand: A.O. Smith®
UPC: 000000000000

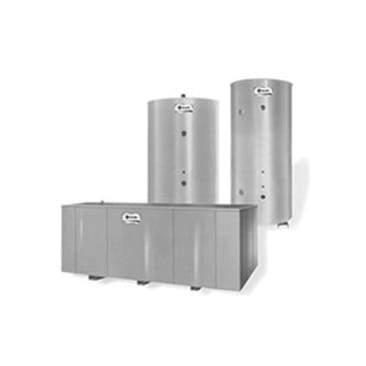

AO Smith® TJVT500A E00000000 100 Vertical Storage Tank, 500 gal Capacity, 46 in Dia, Steel
5 Year Limited
Commercial
ASHRAE Compliant | ASME Specified | CSA Certified
Product Details
Attributes
Features
Resources
AO Smith® Vertical Storage Tank, 500 gal Capacity, Diameter: 46 in, Steel, 125 psi, 150 psi, 180 deg F, 91 in H
Capacity:500 gal
Diameter:46 in
Dimensions:91 in H
Material:Steel
Pressure Rating:125 psi, 150 psi
Temperature Rating:180 deg F
- All stock tanks are glasslined with standard tank openings as shown on following pages
- All tanks are constructed to the requirements of the ASME. ASME code tanks are available in 125 or 150 psi working pressures (125 psi working pressure - standard)
- Entire tank is insulated to meet ASHRAE 90.1 (current edition) depth of insulation cavity requires use of remote bulb-type tank temperature control and thermometer
- Storage tanks meet R12.5 minimum thermal insulation requirements of the U.S. Department of Energy and current edition of ASHRAE/IESNA 90.1
- Cabinet - heavy gauge steel with high-quality paint
- Each lining and coating has particular capabilities and limitations
- Glass lined (standard), these are normally stocked tanks for water storage up to 180 deg F, with glass lining to prevent corrosion and addition of rust to water
- The glass lining was developed over many years of ceramic research for a wide variety of conditions
- Tanks are furnished with anodes designed for maximum protection
