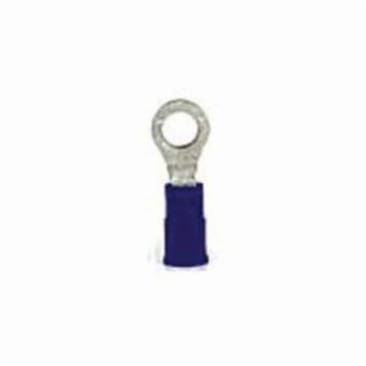

TECHSPAN R4B14S RING PVC BLUE 16-14 1/4IN SM RING (100PK)
MFR Part #: R4B14S
SKU #: 1238107
Brand: Techspan®
UPC: R4B14S
Techspan® R4B14S Ring Terminal, 16 to 14 AWG Conductor, 1.097 in L, Butted Barrel, PVC, Blue
UL Listed | CSA Certified | TUV Rheinland | RoHS Compliant
Product Details
Attributes
Features
Resources
Techspan® Ring Terminal, Solid/Stranded Copper Conductor, 16 to 14 AWG Conductor, #12 x 1/4 in Stud, 1.097 in Length, Butted Barrel, 600 V AC, 75 deg C, PVC, Blue, 0.468 in W
Barrel Type:Butted
Color:Blue
Conductor Size:16 to 14 AWG
Conductor Type:Solid/Stranded Copper
Country Of Origin:US
Dimensions:0.468 in W
Length:1.097 in
Material:PVC
Rewards:AD Rewards
Stud Size:#12 x 1/4 in
Temperature Rating:75 deg C
Voltage Rating:600 V AC
- PVC (butted seam) terminals and splices feature a rigid polyvinyl chloride (PVC) insulation sleeve permanently attached to butted seam barrel
- Attaches to wire with one quick crimp
- Insulation sleeve prevents vibration damage by not allowing wire flex at point of crimp
- Funnel wire entrance into electrical barrel eliminates wire strand hang-up, increases crimping rates and wire termination reliability
- Terminals and splices accept maximum 0.175 in inside diameter wire, 0.032 stock
- PVC plastic insulated sleeve
- -55 to 105 deg C operating temperature
Product Details
Techspan® Ring Terminal, Solid/Stranded Copper Conductor, 16 to 14 AWG Conductor, #12 x 1/4 in Stud, 1.097 in Length, Butted Barrel, 600 V AC, 75 deg C, PVC, Blue, 0.468 in W
Attributes
Barrel Type: Butted
Color: Blue
Conductor Size: 16 to 14 AWG
Conductor Type: Solid/Stranded Copper
Country Of Origin: US
Dimensions: 0.468 in W
Length: 1.097 in
Material: PVC
Rewards: AD Rewards
Stud Size: #12 x 1/4 in
Temperature Rating: 75 deg C
Voltage Rating: 600 V AC
Features
- PVC (butted seam) terminals and splices feature a rigid polyvinyl chloride (PVC) insulation sleeve permanently attached to butted seam barrel
- Attaches to wire with one quick crimp
- Insulation sleeve prevents vibration damage by not allowing wire flex at point of crimp
- Funnel wire entrance into electrical barrel eliminates wire strand hang-up, increases crimping rates and wire termination reliability
- Terminals and splices accept maximum 0.175 in inside diameter wire, 0.032 stock
- PVC plastic insulated sleeve
- -55 to 105 deg C operating temperature
