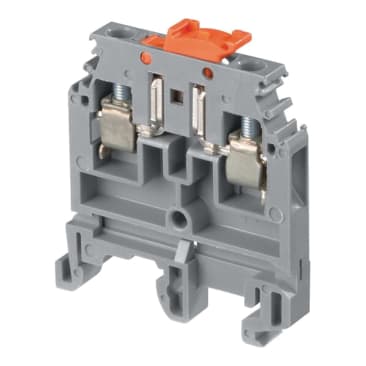

ENTRELEC 115 686 13 M4/6.SNB SWITCH BLOCK 20-12AWG
MFR Part #: 011568613
SKU #: 1016765
Brand: ABB
UPC: 804325159340
ABB 011568613 SNA Heavy Duty Terminal Block With Blade, 400 VAC, 20 A, 22 to 10 AWG Wire, DIN Rail Mount
CE Certified | RMRS Certified | cUL Listed | UL 94 V-0 Flammability Rating | RoHS Compliant
Product Details
Attributes
Features
Resources
ABB Terminal Block, Heavy Duty, Series: SNA, 400 VAC, 20 A, 22 to 10 AWG Wire, 9.5 mm Wire Strip Length, Feed-Through Terminal, 4 mm Spacing, 0.5 to 0.6 N-m Torque, DIN Rail Mounting, Screw Clamp Connection, -55 to 110 deg C, Polyamide, Gray, 6 mm W x 44.5 mm D x 44.5 mm H Dimensions
Amperage Rating:20 A
Color:Gray
Connection Type:Screw Clamp
Dimensions:6 mm W x 44.5 mm D x 44.5 mm H
Material:Polyamide
Mounting Type:DIN Rail
Series:SNA, SNA Series
Spacing:4 mm
Temperature Rating:-5 to 40 deg C, -55 to 110 deg C
Terminal Type:Feed-Through
Torque Rating:0.5 to 0.6 N-m
Type:Heavy Duty
Voltage Rating:400 V AC, 400 VAC
Wire Size:22 to 10 AWG, 10 AWG
Wire Strip Length:9.5 mm
Height:2.09 in
Housing Color:Gray
Housing Material:Polyamide
Number of Connections:2
Pitch Size:6 mm
Width:1.72 in
- Ease your disconnect operations with the disconnect blade operated by hand or with a screwdriver
- Same profile as M4/6 feed through terminal block for aligned marking
Product Details
ABB Terminal Block, Heavy Duty, Series: SNA, 400 VAC, 20 A, 22 to 10 AWG Wire, 9.5 mm Wire Strip Length, Feed-Through Terminal, 4 mm Spacing, 0.5 to 0.6 N-m Torque, DIN Rail Mounting, Screw Clamp Connection, -55 to 110 deg C, Polyamide, Gray, 6 mm W x 44.5 mm D x 44.5 mm H Dimensions
Attributes
Amperage Rating: 20 A
Color: Gray
Connection Type: Screw Clamp
Dimensions: 6 mm W x 44.5 mm D x 44.5 mm H
Material: Polyamide
Mounting Type: DIN Rail
Series: SNA, SNA Series
Spacing: 4 mm
Temperature Rating: -5 to 40 deg C, -55 to 110 deg C
Terminal Type: Feed-Through
Torque Rating: 0.5 to 0.6 N-m
Type: Heavy Duty
Voltage Rating: 400 V AC, 400 VAC
Wire Size: 22 to 10 AWG, 10 AWG
Wire Strip Length: 9.5 mm
Height: 2.09 in
Housing Color: Gray
Housing Material: Polyamide
Number of Connections: 2
Pitch Size: 6 mm
Width: 1.72 in
Features
- Ease your disconnect operations with the disconnect blade operated by hand or with a screwdriver
- Same profile as M4/6 feed through terminal block for aligned marking
