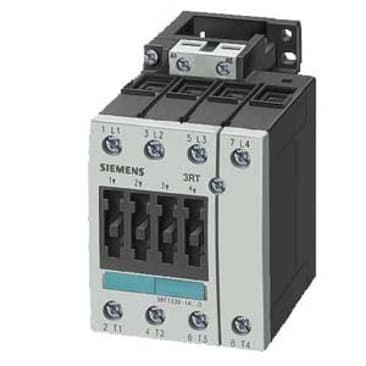

60A CONTRACTOR AC-1 120V 60HZ 4 POLE SIEMENS 3RT1336-1AK60
MFR Part #: 3RT1336-1AK60
SKU #: 1173385
Brand: SIRIUS
UPC: 754554501628
SIRIUS 3RT1336-1AK60 Power Contactor, 690 V, 60 A, 23 kW, 110 to 120 VAC Coil, 3 ph -Phase
ABS Approved | CCC Certified | CSA Certified | EAC Certified | RCM Approved | RINA Approved | RMRS Approved | UL Listed
Product Details
Attributes
Resources
SIRIUS Power Contactor, 690 V, 60 A, 50/60 Hz, 23 kW, 110 to 120 VAC Coil, 3 ph Phase, 4 Poles, Contact Configuration: 4NO, DIN Rail Mounting, S2 Frame, Screw Terminal, IP Rating: IP20, IP00, 10000000 cycles Operating Cycles, -25 to 60 deg C, 112 mm Height, 73 mm Width, 115 mm Depth
Amperage Rating:60 A
Coil Voltage:110 to 120 VAC
Contact Configuration:4NO
Depth:115 mm
Frame Size:S2
Frequency Rating:50/60 Hz
Height:112 mm
IP Rating:IP20, IP00
Mounting Type:DIN Rail
Number of Poles:4
Operating Cycles:10000000 Cycles
Phase:3 ph
Power Rating:23 kW
Temperature Rating:-25 to 60 deg C
Terminal Type:Screw
Voltage Rating:690 V
Width:73 mm
Product Details
SIRIUS Power Contactor, 690 V, 60 A, 50/60 Hz, 23 kW, 110 to 120 VAC Coil, 3 ph Phase, 4 Poles, Contact Configuration: 4NO, DIN Rail Mounting, S2 Frame, Screw Terminal, IP Rating: IP20, IP00, 10000000 cycles Operating Cycles, -25 to 60 deg C, 112 mm Height, 73 mm Width, 115 mm Depth
Attributes
Amperage Rating: 60 A
Coil Voltage: 110 to 120 VAC
Contact Configuration: 4NO
Depth: 115 mm
Frame Size: S2
Frequency Rating: 50/60 Hz
Height: 112 mm
IP Rating: IP20, IP00
Mounting Type: DIN Rail
Number of Poles: 4
Operating Cycles: 10000000 Cycles
Phase: 3 ph
Power Rating: 23 kW
Temperature Rating: -25 to 60 deg C
Terminal Type: Screw
Voltage Rating: 690 V
Width: 73 mm
