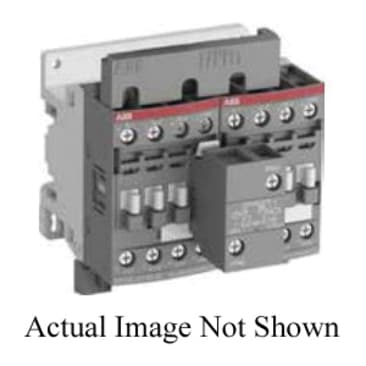

ABB AF30R-30-02-12 Image 1

ABB AF30R-30-02-12 REV. 3-P. 25HP 600VAC COIL 48-130V

MFR Part #: AF30R-30-02-12
SKU #: 1083180
Brand: ABB
UPC: 888614039032
ABB AF30R-30-02-12 AC/DC Operated Reversing IEC Contactor, 48 to 130 V AC/DC V Coil, 32.2 A, 3NO Contact, 3 Poles
For directionally controlling 3-phase motor circuits up to 690 VAC
IEC 60947-1 | IEC 60947-4-1 | EN 60947-1 | EN 60947-4-1 | UL 60947-4-1 | CSA 22.2 60947-4-1

ABB IEC Contactor, AC/DC Operated Reversing, 48 to 130 V AC/DC Coil, 32.2 A Maximum Load Current, 15 kW, 20 hp, 25 hp Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, 2NC Auxiliary Contacts, Cable Clamp Connection, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 1.77 in W x 3.39 in D Dimensions

Product Details

ABB IEC Contactor, AC/DC Operated Reversing, 48 to 130 V AC/DC Coil, 32.2 A Maximum Load Current, 15 kW, 20 hp, 25 hp Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, 2NC Auxiliary Contacts, Cable Clamp Connection, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 1.77 in W x 3.39 in D Dimensions

Attributes

Coil Power Rating: 15 kW, 20 hp, 25 hp
Coil Voltage: 48 to 130 V AC/DC
Connection Type: Cable Clamp
Contact Configuration: 3NO
Country Of Origin: France
Dimensions: 1.77 in W x 3.39 in D
Enclosure Type: IP20
Frequency Rating: 50/60 Hz
Maximum Load Current: 32.2 A
Number of Auxiliary Contacts: 2NC
Number of Poles: 3
Operating Cycles: 10000000 Cycles
Operating Temperature: -40 to 70 deg C
Terminal Type: Screw
Type: AC/DC Operated Reversing

Features

  • Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
  • Can manage large control voltage variations
  • Reduced panel energy consumption
  • Very distinct closing and opening
  • Built-in surge suppression
  • 15 kW at 3-phase 400 V IEC, 20 hp at 440 to 480 VAC, 25 hp at 550 to 600 VAC
  • 32.2 A at 200 to 208 VAC 3-phase UL/CSA

Resources

Catalog
