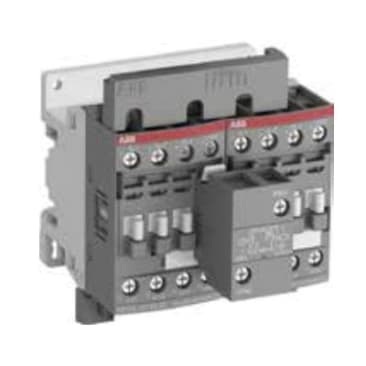

ABB AF30R-30-02-13 Image 1

ABB AF30R-30-02-13 REV. 3-P. 25HP 600VAC COIL 100-250V

MFR Part #: AF30R-30-02-13
SKU #: 1083181
Brand: ABB
UPC: 804325865289
ABB AF30R-30-02-13 3-Phase Reversing IEC Contactor, 100 to 250 VAC/VDC V Coil, 50 A, 3NO Contact, 3 Poles
(2) 3-Pole Contactors, (1) Mechanical and Electrical Interlock, (1) Power Bus and (1) Fixing Clip
For directionally controlling 3-phase motor circuits up to 690 VAC

ABB IEC Contactor, 3-Phase Reversing, Series: AF Series, 100 to 250 VAC/VDC Coil, 50 A Maximum Load Current, 20 hp Coil Power Rating, 3 Poles, 50/60 Hz, 3NO, 2 Auxiliary Contacts, 32.2 A 690 V AC Contact, AF30R, Screw Terminal, IP20, 10000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 60 mm H x 80 mm W x 70 mm D

Product Details

ABB IEC Contactor, 3-Phase Reversing, Series: AF Series, 100 to 250 VAC/VDC Coil, 50 A Maximum Load Current, 20 hp Coil Power Rating, 3 Poles, 50/60 Hz, 3NO, 2 Auxiliary Contacts, 32.2 A 690 V AC Contact, AF30R, Screw Terminal, IP20, 10000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 60 mm H x 80 mm W x 70 mm D

Attributes

Coil Power Rating: 20 hp
Coil Voltage: 100 to 250 V AC/DC
Contact Configuration: 3NO
Contact Rating: 32.2 A 690 V AC
Country Of Origin: France
Dimensions: 60 mm H x 80 mm W x 70 mm D
Enclosure Type: IP20
Frequency Rating: 50/60 Hz
Maximum Load Current: 50 A
Number of Auxiliary Contacts: 2
Number of Poles: 3
Operating Cycles: 10000000 Cycles
Operating Temperature: -40 to 70 deg C
Series: AF Series
Size: AF30R
Terminal Type: Screw
Type: 3-Phase Reversing

Features

  • Can manage large control voltage variations
  • Reduced panel energy consumption
  • Very distinct closing and opening
  • Built-in surge suppression
  • Add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
