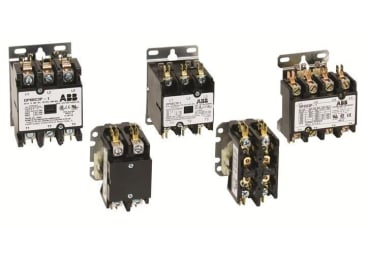

ABB DP20C2P-2 CONTACTOR DP 20A 2P COIL 208-240VAC

MFR Part #: DP20C2P-2
SKU #: 1086007
Brand: ABB
UPC: 804325552226
ABB DP20C2P-2 Definite Purpose Contactor, 208/240 V AC V Coil, 20 A, 2NO Contact, 2 Poles
Motors, Power Supplies, Food Service Equipment, Compressors, Business Machines, Resistive Heating, Air Conditioning, Refrigeration Equipment and Welding
UL 508 | UL Guide No. NLDX2, NLDX8 | UL File No. E224401, C22.2 No. 221260 | CSA Class 3211 04/3211 84 | CE, Semko Certified, EN60947-4-1:2001

ABB, DP20C2P-2, Definite Purpose Contactor, 208/240 V AC Coil, 20 A Maximum Load Current, 6.5/8/30/33 VA Coil, 2 Pole, 50/60 Hz Frequency, Non-Reversing Contact, 2NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 600 VAC Contact, SZ 20 Size, Screw Terminal, NEMA 5/Open Enclosure, 130 deg C Operating, DIN Rail Mounting, 3.3 in H x 2 in W x 2.44 in D Dimensions

Product Details

ABB, DP20C2P-2, Definite Purpose Contactor, 208/240 V AC Coil, 20 A Maximum Load Current, 6.5/8/30/33 VA Coil, 2 Pole, 50/60 Hz Frequency, Non-Reversing Contact, 2NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 600 VAC Contact, SZ 20 Size, Screw Terminal, NEMA 5/Open Enclosure, 130 deg C Operating, DIN Rail Mounting, 3.3 in H x 2 in W x 2.44 in D Dimensions

Attributes

Coil Power Rating: 6.5/8/30/33 VA
Coil Voltage: 208/240 V AC
Contact Configuration: 2NO
Contact Rating: 600 V AC
Contact Type: Non-Reversing
Country Of Origin: China
Dimensions: 3.3 in H x 2 in W x 2.44 in D
Enclosure Type: NEMA 5/Open
Frequency Rating: 50/60 Hz
Maximum Load Current: 20 A
Mounting Type: DIN Rail
Number of Auxiliary Contacts: 1NO-1NC
Number of Poles: 2
Operating Temperature: 130 deg C
Size: SZ 20
Terminal Type: Screw

Features

  • Industry standard mounting plate with easy access mounting holes
  • Coil terminals are provided with #6-32 screws and (1) 0.25 quick connect or dual 0.25 quick connect terminals
  • Exclusive hex, slotted, Phillips 10 to 32 AWG terminal screws for main terminals
  • Coil is class B insulation system with a wide range of voltages and 50/60 Hz ratings
  • Double E-magnet assembly provides optimal performance with reduced power consumption
  • Base assembly is made from high arc-resistant polyester
  • Designed for HVAC and refrigeration equipment operation and control
  • 33/30 VA inrush, 8/6.5 VA closed coil power rating
