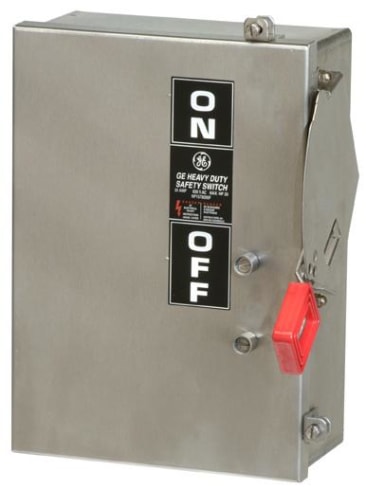

ABB TH3361SSW 30A 3P HD N4X SS316 600V FUSIBLE WI
MFR Part #: TH3361SSW
SKU #: 1235057
Brand: ABB
UPC: 783164065022
GE Spec-Setter™ TH3361SSW Type TH Water/Dust-Tight Fused Standard Watertight Heavy Duty Safety Switch, 600 VAC, 30 A, 3 hp, 5 hp, 7-1/2 hp, 10 hp, 20 hp, 3 Poles
1 year
Commercial, Industrial and Indoor/Outdoor Applications
ARRA Compliant | Buy American Act Compliant | RoHS Compliant | UL 98 | cUL Listed | CSA C22.2 No. 4-04 | Federal Specification W-S-865C | NEMA KS1-2013 | Seismic Certified
Product Details
Attributes
Features
Resources
GE Spec-Setter™ Heavy Duty Safety Switch, Type TH Water/Dust-Tight Fused Standard Watertight, 600 VAC, 30 A, 3 hp, 5 hp, 7-1/2 hp, 10 hp, 20 hp, 1/3, 50/60 Hz, 3 Pole, 3 Wires, 200 kA Short Circuit Current Rating, Donut Handle Actuator, Class J/R Insulation, NEMA 4/4X Enclosure, 3/4-Point Welded Bracket Mount, Line/Load Lug Terminal, 9.4 in W x 4.9 in D x 13.3 in H, 304 Stainless Steel, Powder Coated
Amperage Rating:30 A
Enclosure Type:NEMA 4/4X
Number of Poles:3
Actuator Type:Donut Handle
Dimensions:9.4 in W x 4.9 in D x 13.3 in H
Finish:Powder Coated
Frequency Rating:50/60 Hz
Horsepower:3 hp, 5 hp, 7-1/2 hp, 10 hp, 20 hp
Insulation Type:Class J/R
Material:304 Stainless Steel
Mounting Type:3/4-Point Welded Bracket
Number of Wires:3
Phase:1/3
Short Circuit Current Rating:200 kA
Terminal Type:Line/Load Lug
Type:Type TH Water/Dust-Tight Fused Standard Watertight
Voltage Rating:600 V AC
- Bright red "donut" handle molded from rugged SE1 noryl thermoplastic is easy to see, easy to grip and ideal for hook stick operation, it accepts 3-padlocks in OFF position
- Coin proof, defeatable dual interlocks meet all safety inspection requirements
- Wide, unobstructed gutter and removable interior make wire pulling and lug connections quick and easy
- 3-point mounting pattern speeds installation and simplifies ganging in close quarters
- Clear line shield allows visual verification of blade position while guarding against accidental contact with live parts
- Accessories, such as auxiliary switch kits, are UL Listed for quick and easy field installation (or they may be factory installed)
- Plated blades provide visible confirmation of contact position
- Direct drive, quick make, quick break mechanism "snaps" the contacts open and closed, providing positive ON/OFF indication while prolonging switch life
- Spring reinforced fuse clips assure reliable contact for cool operation, suitable for Class H, K, J or R fuses
- Cu/Al lugs are 60/75 deg C rated to permit greater wire selection
- Galvanized steel enclosure offers superior rust protection in outdoor applications, there's also a durable polyester powder coated finish
- Designed for commercial and industrial applications where safety, high performance and continuity of service are essential
- Dead front switches
- Suitable for use as service equipment when installed in accordance with the National Electrical Code®
- Full cover interlocks
- 7-1/2 hp at 240 VAC 3-phase time delay, 3 hp at 480 VAC 1-phase NEC Standard, 5 hp at 480 VAC 3-phase NEC Standard, 7-1/2 hp at 480 VAC 1-phase time delay, 15 hp at 480 VAC 3-phase time delay, 3 hp at 600 VAC 1-phase NEC Standard, 7-1/2 hp at 600 VAC 3-phase NEC Standard, 10 hp at 600 VAC 1-phase time delay, 20 hp at 600 VAC 3-phase time delay, 2 hp at 125 VDC, 5 hp at 250 VDC horsepower rating
