ABB THQL32020 Image 1

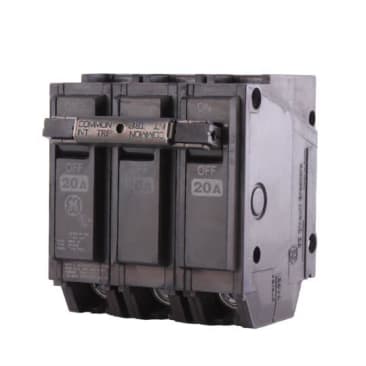

ABB THQL32020 ASM THQL C/B 3P 240V

MFR Part #: THQL32020
SKU #: 1235102
Brand: ABB
UPC: 783164013016
GE Q-Line® THQL32020 Type THQL Molded Case Circuit Breaker, 120/240 V AC, 20 A, 10 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Commercial, Residential, Thermal Magnetic, Electrical Distribution and Control Applications
GSA Compliant | UL File No. E11592 | HACR Rated

GE Q-Line® Molded Case Circuit Breaker, Type THQL, 120/240 V AC, 20 A, 10 kA Interrupt, Q-Line Frame, Thermal Magnetic Trip, 3 Pole, 1 ph, 12 to 8 AWG Wire, Plug-In Mounting, 60/75 deg C, 2-3/8 in L x 1 in W x 3-9/32 in H Dimensions

Q-Line® circuit breakers are 1 in wide per pole, compact, thermal magnetic devices designed for residential and commercial applications. the QL breakers are plug-in versions of the Q-Line® used for connection to loadcenters and lighting panels. all Q-Line® circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q-Line® breakers are available in 1, 2 and 3-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.

Product Details

GE Q-Line® Molded Case Circuit Breaker, Type THQL, 120/240 V AC, 20 A, 10 kA Interrupt, Q-Line Frame, Thermal Magnetic Trip, 3 Pole, 1 ph, 12 to 8 AWG Wire, Plug-In Mounting, 60/75 deg C, 2-3/8 in L x 1 in W x 3-9/32 in H Dimensions

Q-Line® circuit breakers are 1 in wide per pole, compact, thermal magnetic devices designed for residential and commercial applications. the QL breakers are plug-in versions of the Q-Line® used for connection to loadcenters and lighting panels. all Q-Line® circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q-Line® breakers are available in 1, 2 and 3-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.

Attributes

Amperage Rating: 20 A
Number of Poles: 3
Dimensions: 2-3/8 in L x 1 in W x 3-9/32 in H
Frame: Q-Line
Interrupt Rating: 10 kA
Mounting Type: Plug-In
Phase: 1
Temperature Rating: 60/75 deg C
Trip Type: Thermal Magnetic
Type: Type THQL
Voltage Rating: 120/240 V AC
Wire Size: 12 to 8 AWG

Features

  • R8 GO schedule
  • For heating, air conditioning and refrigeration
  • Incorporates internal common trip bar
  • 12 to 8 AWG aluminum, 14 to 8 AWG copper wire range

Resources

Specification Sheet
