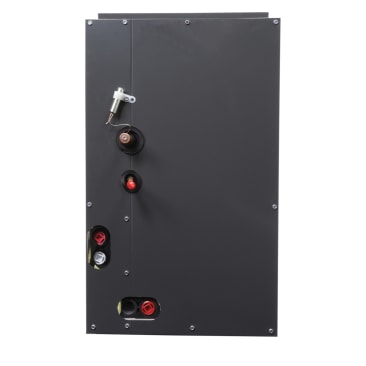

ASPEN CE48A24-240L-132 4T 48MBH COPPER CASED MULTI-POSITION EVAPORATOR COIL TXV WITH PAINTED CABINET
Product Details
Attributes
Features
Resources
Aspen Air Conditioner Coil, CE Series, Model: CE48A, 48000 Btu/hr Nominal Capacity, Multi-Position, 3/4 in Drain Pan, Cased Coil, 500 psi, 290 deg F, Painted, 27 in H x 21-1/2 in D
Aspen coils and air handlers are engineered with Universal A2L Refrigerant Technology, allowing field configurability for either R32 or R454B refrigerants. Each unit ships with a factory-installed A2L metering device that can be easily swapped at installation, and includes the option for a factory- or field-installed universal Refrigerant Detection System (RDS) compatible with both refrigerants.
- Rifled copper tubing, enhanced aluminum fins.
- Fully insulated cabinets with faced insulation. Split access doors in front of cabinet for easy service access.
- Heavy duty plastic drain pans on most models, powder coated galvanized steel horizontal drain pans standard on all.
- Schrader provided for pressure assurance testing.
- Multi-stage leak testing at 500 psi pressure decay, mass spectrometer tested with Helium, then Nitrogen pressurized and factory sealed for maximum reliability.
Product Details
Aspen Air Conditioner Coil, CE Series, Model: CE48A, 48000 Btu/hr Nominal Capacity, Multi-Position, 3/4 in Drain Pan, Cased Coil, 500 psi, 290 deg F, Painted, 27 in H x 21-1/2 in D
Aspen coils and air handlers are engineered with Universal A2L Refrigerant Technology, allowing field configurability for either R32 or R454B refrigerants. Each unit ships with a factory-installed A2L metering device that can be easily swapped at installation, and includes the option for a factory- or field-installed universal Refrigerant Detection System (RDS) compatible with both refrigerants.
Attributes
Features
- Rifled copper tubing, enhanced aluminum fins.
- Fully insulated cabinets with faced insulation. Split access doors in front of cabinet for easy service access.
- Heavy duty plastic drain pans on most models, powder coated galvanized steel horizontal drain pans standard on all.
- Schrader provided for pressure assurance testing.
- Multi-stage leak testing at 500 psi pressure decay, mass spectrometer tested with Helium, then Nitrogen pressurized and factory sealed for maximum reliability.
