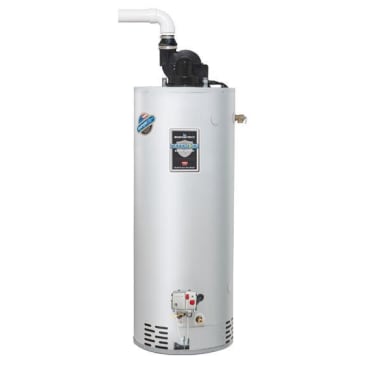

BRADFORD RG1PV50S6X19-457 Image 1

BRADFORD RG1PV50S6X19-457 TTW SEA-LEVEL 50USG 38MBH PROPANE POWER VENT WATER HEATER

MFR Part #: RG1PV50S6X19-457
SKU #: 1256836
Brand: Bradford White®
UPC: 671632995363
Bradford White® TTW® RG1PV50S6X19 Gas Water Heater, 38000 Btu/hr Heating, 50 gal Tank, Liquid Propane Fuel, Power Vent, 41 gph at 90 deg F Rise Recovery, Short, Domestic
6 years Limited Tank/6 years Limited on Component Parts
Thermostatic Mixing Valve and Temperature and Pressure Relief Valve
Residential
ASHRAE 90.1b | AHRI Certified | ANSI Z21.10.1-2017/CSA 4.1-2017 | CEC Listed | Massachusetts Approved | NSF 372 | ENERGY STAR® Certified | PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov

Bradford White® TTW® Gas Water Heater, 38000 Btu/hr Heating, Liquid Propane Fuel, 1/2 in Gas Connection, 50 gal Tank, Spark Pilot Ignition, Power Vent, 2 or 3 in Vent, 41 gph at 90 deg F Rise Recovery Rate, 0.69, 3/4 in NPT Water Connection, 150 psi Pressure, Short Tall or Short, No Ultra Low NOx, Steel, Vitraglas®, 22 in Dia x 27-3/16 in D x 56-3/8 in H, Domestic

The -457 indicates that this SKU was designed and certified for Installation in Canada.

Bradford White TTW® Defender Safety System®, 50 Gallon Standard Residential Gas (Liquid Propane) Power Vent Water Heater. 6-Year Tank Warranty, 38,000 BTU/Hr., 120 Volts, Single Phase, with Power Cord included.

Product Details

Bradford White® TTW® Gas Water Heater, 38000 Btu/hr Heating, Liquid Propane Fuel, 1/2 in Gas Connection, 50 gal Tank, Spark Pilot Ignition, Power Vent, 2 or 3 in Vent, 41 gph at 90 deg F Rise Recovery Rate, 0.69, 3/4 in NPT Water Connection, 150 psi Pressure, Short Tall or Short, No Ultra Low NOx, Steel, Vitraglas®, 22 in Dia x 27-3/16 in D x 56-3/8 in H, Domestic

The -457 indicates that this SKU was designed and certified for Installation in Canada.

Bradford White TTW® Defender Safety System®, 50 Gallon Standard Residential Gas (Liquid Propane) Power Vent Water Heater. 6-Year Tank Warranty, 38,000 BTU/Hr., 120 Volts, Single Phase, with Power Cord included.

Attributes

BTU Rating: 38000 Btu/hr
Capacity: 50 gal
Country Of Origin: US
Domestic/Import: Domestic
Energy Factor: .69
Finish: Vitraglas®
Gas Connection: 1/2 in
Heating Capacity: 38000 Btu/hr
Ignition Type: Spark Pilot
Material: Steel
Pressure Rating: 150 psi
Recovery Rate: 41 gph at 90 deg F Rise
Tall or Short: Short
Tank Capacity: 50 gal
Ultra Low NOx: No
Vent Size: 2 or 3 in
Water Connection: 3/4 in NPT
Water Heater Type: Gas

Features

  • Bradford White® ICON system®
  • Powerful blower motor
  • Horizontal and vertical venting
  • FVIR Defender safety system® featuring the patented advanced ScreenLok® technology flame arrestor design (except models above 75000 BTU/Hr)
  • Hydrojet® total performance system
  • 1 in THK non-CFC foam insulation
  • Heat traps
  • Protective magnesium rod
  • Low restrictive brass drain valve
