FAIRVIEW 66-6E 3/8 X 3/4 COMP/FIP ADPT
MFR Part #:Â 66-6E
SKU #:Â 0131150
Brand:Â Fairview
UPC:Â 400000085722

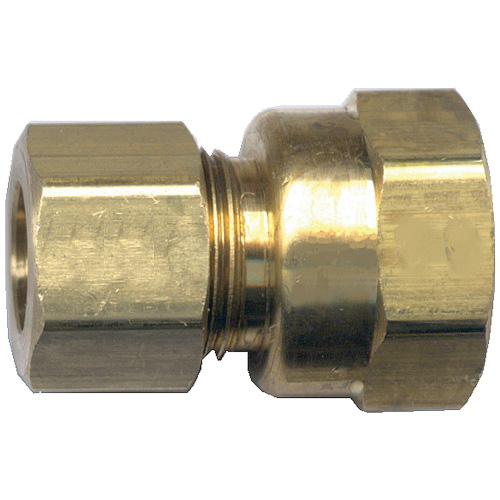

Fairview 66-6E Pipe Connector, 3/8 in Compression x 3/4 in FNPT, Brass
1 Year
For low pressure water, air, oil, copper, brass, aluminum and plastic tube
Product Details
Attributes
Features
Resources
Fairview Pipe Connector, 66 Series, Connector Fitting, 3/8 in Connection Size 1, Connection Type 1: Compression, 3/4 in Connection Size 2, Connection Type 2: FNPT, Compression|FNPT Connection, Brass, Material Construction: Brass, 3/8 in Tube OD, 200 psi, -65 to 250 deg F
Fitting/Connector Type:
Adapter
Nominal Size:
3/8 x 3/4 in
Pressure Rating:
200 psi
Connection Size 1:
3/8 in
Connection Size 2:
3/4 in
Connection Type:
Compression|FNPT
Connection Type 1:
Compression
Connection Type 2:
FNPT
Fitting Type:
Connector
Material:
Brass
Material Construction:
Brass
Series:
66 Series
Temperature Rating:
-65 to 250 deg F
Tube OD:
3/8 in
- The compression connection is a three-piece assembly that consists of a cap-shaped nut with female threads, a compression sleeve that looks like a simple wedding ring and a seat section with male threads
- The cap nut and the seat are screwed together causing the compression sleeve to squeeze tightly against them, as well as the adjoining tube
- This causes a compressed or compression type watertight connection
Product Details
Fairview Pipe Connector, 66 Series, Connector Fitting, 3/8 in Connection Size 1, Connection Type 1: Compression, 3/4 in Connection Size 2, Connection Type 2: FNPT, Compression|FNPT Connection, Brass, Material Construction: Brass, 3/8 in Tube OD, 200 psi, -65 to 250 deg F
Attributes
Fitting/Connector Type:Â Adapter
Nominal Size:Â 3/8 x 3/4 in
Pressure Rating:Â 200 psi
Connection Size 1:Â 3/8 in
Connection Size 2:Â 3/4 in
Connection Type:Â Compression|FNPT
Connection Type 1:Â Compression
Connection Type 2:Â FNPT
Fitting Type:Â Connector
Material:Â Brass
Material Construction:Â Brass
Series:Â 66 Series
Temperature Rating:Â -65 to 250 deg F
Tube OD:Â 3/8 in
Features
- The compression connection is a three-piece assembly that consists of a cap-shaped nut with female threads, a compression sleeve that looks like a simple wedding ring and a seat section with male threads
- The cap nut and the seat are screwed together causing the compression sleeve to squeeze tightly against them, as well as the adjoining tube
- This causes a compressed or compression type watertight connection
