FAIRVIEW LF-68-6C COMP CONN 3/8 T X 3/8 MPT LF
MFR Part #: LF-68-6C
SKU #: 1107913
Brand: Fairview
UPC: 741330747080

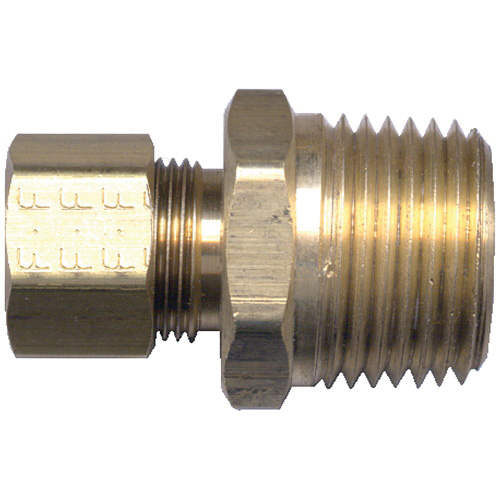

Fairview LF-68-6C Reducing Connector, 3/8 in Compression x 3/8 in MNPT, Brass
1 Year
For conveying or dispensing water for human consumption through drinking or cooking as well as other pneumatic instrumentation, lubrication, coolant lines and with other gases, fluids compatible with the tubing
ASME A112.18.1 Specified | CSA N125.1/B125.3 Certified | ANSI/NSF 372 Certified
Product Details
Attributes
Features
Resources
Fairview Reducing Connector, LF-68 Series, Connector Fitting, 3/8 in Connection Size 1, Connection Type 1: Compression, 3/8 in Connection Size 2, Connection Type 2: MNPT, Compression|MNPT Connection, Brass, Material Construction: Brass, 3/8 in Tube OD, 150 psi, 0 to 150 deg F
Country Of Origin:India
Pressure Rating:150 psi
Connection Size 1:3/8 in
Connection Size 2:3/8 in
Connection Type:Compression|MNPT
Connection Type 1:Compression
Connection Type 2:MNPT
Fitting Type:Connector
Material:Brass
Material Construction:Brass
Series:LF-68 Series
Temperature Rating:0 to 150 deg F
Tube OD:3/8 in
- Lead-free
- The compression connection is a three-piece assembly that consists of a cap-shaped nut with female threads, a compression sleeve that looks like a simple wedding ring and a seat section with male threads
- The cap nut and the seat are screwed together causing the compression sleeve to squeeze tightly against them, as well as the adjoining tube
- This causes a compressed or compression type watertight connection
Product Details
Fairview Reducing Connector, LF-68 Series, Connector Fitting, 3/8 in Connection Size 1, Connection Type 1: Compression, 3/8 in Connection Size 2, Connection Type 2: MNPT, Compression|MNPT Connection, Brass, Material Construction: Brass, 3/8 in Tube OD, 150 psi, 0 to 150 deg F
Attributes
Country Of Origin: India
Pressure Rating: 150 psi
Connection Size 1: 3/8 in
Connection Size 2: 3/8 in
Connection Type: Compression|MNPT
Connection Type 1: Compression
Connection Type 2: MNPT
Fitting Type: Connector
Material: Brass
Material Construction: Brass
Series: LF-68 Series
Temperature Rating: 0 to 150 deg F
Tube OD: 3/8 in
Features
- Lead-free
- The compression connection is a three-piece assembly that consists of a cap-shaped nut with female threads, a compression sleeve that looks like a simple wedding ring and a seat section with male threads
- The cap nut and the seat are screwed together causing the compression sleeve to squeeze tightly against them, as well as the adjoining tube
- This causes a compressed or compression type watertight connection
