FAIRVIEW LF-70-6B COMP 90ELB 3/8 T X 1/4 FPT LF
MFR Part #:Â LF-70-6B
SKU #:Â 1107938
Brand:Â Fairview
UPC:Â 741330754842

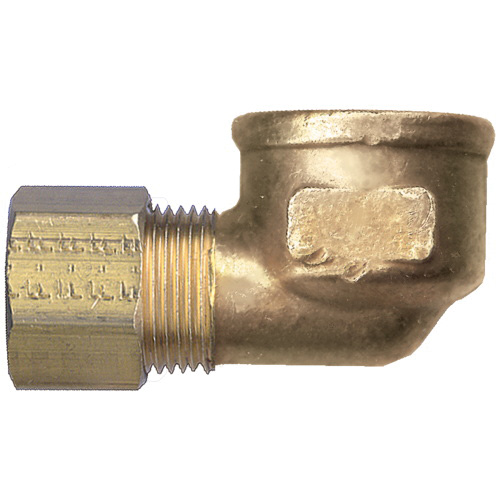

Fairview LF-70-6B 90 deg Reducing Elbow, 3/8 in Compression x 1/4 in FNPT, Brass
1 Year
For conveying or dispensing water for human consumption through drinking or cooking as well as other pneumatic instrumentation, lubrication, coolant lines and with other gases, fluids compatible with the tubing
Product Details
Attributes
Features
Resources
Fairview 90 deg Reducing Elbow, LF-70 Series, 90 deg Elbow Fitting, 3/8 in Connection Size 1, Connection Type 1: Compression, 1/4 in Connection Size 2, Connection Type 2: FNPT, Compression|FNPT Connection, Brass, Material Construction: Brass, 3/8 in Tube OD, 200 psi, 0 to 150 deg F
Fitting/Connector Type:
90 deg Elbow
Nominal Size:
3/8 x 1/4 in
Pressure Rating:
200 psi
Connection Size 1:
3/8 in
Connection Size 2:
1/4 in
Connection Type:
Compression|FNPT
Connection Type 1:
Compression
Connection Type 2:
FNPT
Fitting Type:
90 deg Elbow
Material:
Brass
Material Construction:
Brass
Series:
LF-70 Series
Temperature Rating:
0 to 150 deg F
Tube OD:
3/8 in
- Lead-free
- The compression connection is a three-piece assembly that consists of a cap-shaped nut with female threads, a compression sleeve that looks like a simple wedding ring and a seat section with male threads
- The cap nut and the seat are screwed together causing the compression sleeve to squeeze tightly against them, as well as the adjoining tube
- This causes a compressed or compression type watertight connection
Product Details
Fairview 90 deg Reducing Elbow, LF-70 Series, 90 deg Elbow Fitting, 3/8 in Connection Size 1, Connection Type 1: Compression, 1/4 in Connection Size 2, Connection Type 2: FNPT, Compression|FNPT Connection, Brass, Material Construction: Brass, 3/8 in Tube OD, 200 psi, 0 to 150 deg F
Attributes
Fitting/Connector Type:Â 90 deg Elbow
Nominal Size:Â 3/8 x 1/4 in
Pressure Rating:Â 200 psi
Connection Size 1:Â 3/8 in
Connection Size 2:Â 1/4 in
Connection Type:Â Compression|FNPT
Connection Type 1:Â Compression
Connection Type 2:Â FNPT
Fitting Type:Â 90 deg Elbow
Material:Â Brass
Material Construction:Â Brass
Series:Â LF-70 Series
Temperature Rating:Â 0 to 150 deg F
Tube OD:Â 3/8 in
Features
- Lead-free
- The compression connection is a three-piece assembly that consists of a cap-shaped nut with female threads, a compression sleeve that looks like a simple wedding ring and a seat section with male threads
- The cap nut and the seat are screwed together causing the compression sleeve to squeeze tightly against them, as well as the adjoining tube
- This causes a compressed or compression type watertight connection
