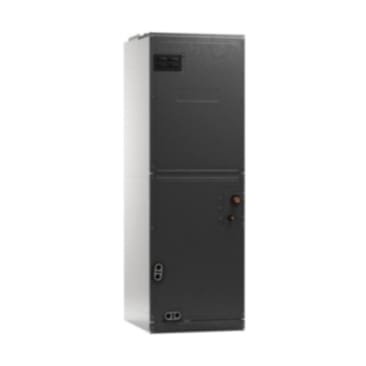

GOODMAN ASPT49C14 AIRHANDLER
Product Details
Attributes
Features
Resources
Goodman® Air Handler, Nominal Capacity: 4 ton, Cooling Capacity: 48000 Btu/hr, 208 to 240 VAC, 7.1 A, 3/4 hp, 60 Hz, 1 ph, 1485 to 2215 cfm, Configuration: Multi-Position, 13 SEER, Connection Type: FNPT, Refrigerant Type: R-410A, 15 A Fuse, 3/4 in Connection, 3/8 in Liquid Line, 7/8 in Suction Line, Motor Type: Multi-Speed EEM, Galvanized/Leather Grain-Embossed/Painted, 24-1/2 in W x 58 in H x 21 in D, Domestic
- Internal factory installed thermal expansion valves
- Direct drive, multi-speed ECM blower motor
- All aluminum evaporator coils
- Coil mounting track for quick repositioning
- Foil faced insulation covers the internal casing to reduce cabinet condensation
- Rigid SmartFrame™ cabinet
- Cabinet air leakage less than 1.4% at 1/2 in H2O when tested in accordance with ASHRAE standard 193
- Cabinet air leakage less than 2% at 1 in H2O when tested in accordance with ASHRAE standard 193
- DecaBDE free thermoplastic drain pan with secondary drain connections
- Screw less sides and back helps to reduce condensation when installed in humid locations
- 21 in D for easier attic access
- Glue less cabinet insulation retention
- Tool less filter access
Product Details
Goodman® Air Handler, Nominal Capacity: 4 ton, Cooling Capacity: 48000 Btu/hr, 208 to 240 VAC, 7.1 A, 3/4 hp, 60 Hz, 1 ph, 1485 to 2215 cfm, Configuration: Multi-Position, 13 SEER, Connection Type: FNPT, Refrigerant Type: R-410A, 15 A Fuse, 3/4 in Connection, 3/8 in Liquid Line, 7/8 in Suction Line, Motor Type: Multi-Speed EEM, Galvanized/Leather Grain-Embossed/Painted, 24-1/2 in W x 58 in H x 21 in D, Domestic
Attributes
Features
- Internal factory installed thermal expansion valves
- Direct drive, multi-speed ECM blower motor
- All aluminum evaporator coils
- Coil mounting track for quick repositioning
- Foil faced insulation covers the internal casing to reduce cabinet condensation
- Rigid SmartFrame™ cabinet
- Cabinet air leakage less than 1.4% at 1/2 in H2O when tested in accordance with ASHRAE standard 193
- Cabinet air leakage less than 2% at 1 in H2O when tested in accordance with ASHRAE standard 193
- DecaBDE free thermoplastic drain pan with secondary drain connections
- Screw less sides and back helps to reduce condensation when installed in humid locations
- 21 in D for easier attic access
- Glue less cabinet insulation retention
- Tool less filter access
