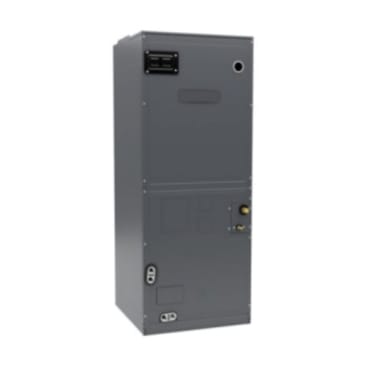

GOODMAN AVPTC35B14 AIR HANDLER
Product Details
Attributes
Features
Resources
Goodman® Air Handler, Nominal Capacity: 3 ton, Cooling Capacity: 36000 Btu/hr, 208 to 240 VAC, 4.9 A, 1/2 hp, 60 Hz, 1 ph, 580 to 900 cfm, Configuration: Multi-Position, 13 SEER, Connection Type: FNPT, Refrigerant Type: R-410A, 15 A Fuse, 3/4 in Connection, 3/8 in Liquid Line, 7/8 in Suction Line, Motor Type: Variable Speed ECM, Galvanized/Leather Grain-Embossed/Painted, 17-1/2 in W x 45 in H x 21 in D, Domestic
Revolutionary Comfort Bridge technology is factory-installed into select Goodman® gas furnaces and air handlers to ensure that the entire system operates at peak, energy-efficient performance. Simply put, communications technology that is typically located in a thermostat was moved from the wall and securely placed into the HVAC equipment.
- Internal factory installed thermal expansion valves
- ComfortBridge™ communications system compatible
- Auto-configuration of the airflow and tonnage in communicating mode
- Provides constant cfm over a wide range of static pressure conditions independent of duct system
- cfm indicator
- Provides adjustable low cfm for efficient fan only operation
- Cabinet air leakage less than 1.4% at 1/2 in H2O when tested in accordance with ASHRAE standard 193
- Cabinet air leakage less than 2% at 1 in H2O when tested in accordance with ASHRAE standard 193
- DecaBDE free thermoplastic drain pan with secondary drain connections
- Rigid SmartFrame™ 1-piece cabinet
- 21 in D for easier attic access
- Improved humidity and comfort control
- Horizontal or vertical configuration capabilities
- Built-in compatibility with multi-stage heat pump and cooling applications
- All aluminum evaporator coils
- Screw less sides and back helps to reduce condensation when installed in humid locations
- Foil faced insulation covers the internal casing to reduce cabinet condensation
- Glue less cabinet insulation retention
- Tool less filter access
