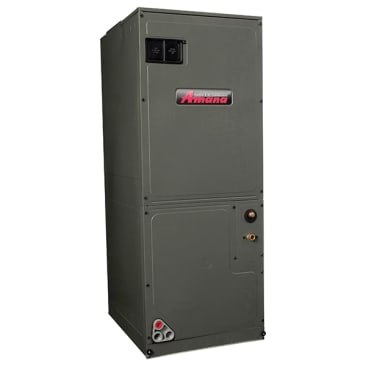

GOODMAN AVPTC59D14 AIR HANDLER
MFR Part #: AVPTC59D14
SKU #: 1219502
Brand: Goodman®
UPC: 978965
Amana® AVPTC59D14 Air Handler, 48000 Btu/hr Cooling BTU, 1990 cfm High, 1445 cfm Low, 208 to 230 VAC, 1 hp, 60 Hz
AHRI Certified, C/US ETL Intertek Listed
Product Details
Attributes
Features
Resources
Amana® Air Handler, Series: AVPTC, 4 to 5 ton Nominal Capacity, 48000 Btu/hr Cooling, 208 to 230 VAC, 8.6 A Minimum Circuit, 1 hp, 60 Hz, 1 ph, 1990 cfm High, 1445 cfm Low CFM Rating, Multi-Position, 13 SEER, FPT Connection, R-410A Refrigerant, 15 A Fuse Rating, Galvanized/Leather Grain-Embossed/Painted, 53-7/16 in H x 24-1/2 in W x 21 in D
Amperage Rating:
8.6 A Minimum Circuit
BTU Rating:
48000 Btu/hr Cooling
CFM Rating:
1990 cfm High, 1445 cfm Low
Configuration:
Multi-Position
Connection Type:
FPT
Dimensions:
53-7/16 in H x 24-1/2 in W x 21 in D
Finish:
Galvanized/Leather Grain-Embossed/Painted
Frequency Rating:
60 Hz
Fuse Rating:
15 A
HP Rating:
1 hp
Nominal Capacity:
4 to 5 ton
Phase:
1 ph
Refrigerant Type:
R-410A
SEER Rating:
13
Series:
AVPTC
Voltage Rating:
208 to 230 VAC
- Internal factory-installed thermal expansion valves for cooling and heat pump applications
- Variable-speed ECM blower motor
- ComfortNet communicating systems compatible
- Auto configuration of the airflow and tonnage in communicating mode
- Provides constant cu-ft/min over a wide range of static pressure conditions independent of duct system
- CFM indicator
- Provides adjustable low cu-ft/min for efficient fan-only operation
- Improved humidity control and comfort
- Built-in compatibility with multi-stage heat pump and cooling applications
- All aluminum evaporator coils
- Rigid SmartFrame cabinet
- Cabinet air leakage less than 2% at 1 in H2O when tested in accordance with ASHRAE standard 193
- Cabinet air leakage less than 1.4% at 1/2 in H2O when tested in accordance with ASHRAE standard 193
- Horizontal or vertical configuration capabilities
- 21 in D for easier attic access
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Screw-less sides and back helps to reduce condensation when installed in humid locations
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Glue-less cabinet insulation retention
- Tool-less filter access
Product Details
Amana® Air Handler, Series: AVPTC, 4 to 5 ton Nominal Capacity, 48000 Btu/hr Cooling, 208 to 230 VAC, 8.6 A Minimum Circuit, 1 hp, 60 Hz, 1 ph, 1990 cfm High, 1445 cfm Low CFM Rating, Multi-Position, 13 SEER, FPT Connection, R-410A Refrigerant, 15 A Fuse Rating, Galvanized/Leather Grain-Embossed/Painted, 53-7/16 in H x 24-1/2 in W x 21 in D
Attributes
Amperage Rating: 8.6 A Minimum Circuit
BTU Rating: 48000 Btu/hr Cooling
CFM Rating: 1990 cfm High, 1445 cfm Low
Configuration: Multi-Position
Connection Type: FPT
Dimensions: 53-7/16 in H x 24-1/2 in W x 21 in D
Finish: Galvanized/Leather Grain-Embossed/Painted
Frequency Rating: 60 Hz
Fuse Rating: 15 A
HP Rating: 1 hp
Nominal Capacity: 4 to 5 ton
Phase: 1 ph
Refrigerant Type: R-410A
SEER Rating: 13
Series: AVPTC
Voltage Rating: 208 to 230 VAC
Features
- Internal factory-installed thermal expansion valves for cooling and heat pump applications
- Variable-speed ECM blower motor
- ComfortNet communicating systems compatible
- Auto configuration of the airflow and tonnage in communicating mode
- Provides constant cu-ft/min over a wide range of static pressure conditions independent of duct system
- CFM indicator
- Provides adjustable low cu-ft/min for efficient fan-only operation
- Improved humidity control and comfort
- Built-in compatibility with multi-stage heat pump and cooling applications
- All aluminum evaporator coils
- Rigid SmartFrame cabinet
- Cabinet air leakage less than 2% at 1 in H2O when tested in accordance with ASHRAE standard 193
- Cabinet air leakage less than 1.4% at 1/2 in H2O when tested in accordance with ASHRAE standard 193
- Horizontal or vertical configuration capabilities
- 21 in D for easier attic access
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Screw-less sides and back helps to reduce condensation when installed in humid locations
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Glue-less cabinet insulation retention
- Tool-less filter access
