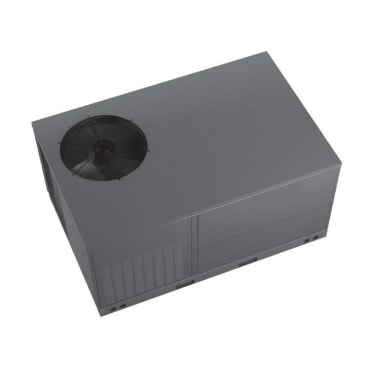

GOODMAN GPG1660140M41 5 TON RESIDENTIAL PKG-GAS
MFR Part #:Â GPG1660140M41
SKU #:Â 1219411
Brand: Goodman®
UPC:Â 978874
Goodman® GPG16M GPG1660140M41 Self Contained Package Gas/Electric Unit, 208/230 VAC, 1300 cfm, 0.81 AFUE, 5 ton
AHRI Certified, C/US ETL Intertek Listed, ISO 9001, ISO 14001 Certified
Product Details
Attributes
Features
Resources
Goodman® Self Contained Package Gas/Electric Unit, Series: GPG16M, 58500 Btu/hr Cooling, 138000 Btu/hr Heating Input BTU, 208/230 VAC, 3/4 hp, 1050 rpm Rotational Speed, 60 Hz, 1 ph Phase, Scroll Compressor, Multi-Position, 1300 cfm, 16 SEER, 0.81 AFUE, 5 ton Tonnage, R-410A Refrigerant, 78 dBA Decibel Rating, 50 A Fuse Rating, Heavy Gauge Steel, Zinc-Coated, Powder-Painted, 73.945 in W x 48.196 in D x 42.84 in H
AFUE Rating:
.81
CFM Rating:
1300 cfm
Compressor Type:
Scroll
Configuration:
Multi-Position
Decibel Rating:
78 dBA
Dimensions:
73.945 in W x 48.196 in D x 42.84 in H
Finish:
Zinc-Coated, Powder-Painted
Frequency Rating:
60 Hz
Fuse Rating:
50 A
HP Rating:
3/4 hp
Input BTU Rating:
58500 Btu/hr Cooling, 138000 Btu/hr Heating
Material:
Heavy Gauge Steel
Phase:
1 ph
Refrigerant Type:
R-410A
Rotational Speed:
1050 rpm
SEER Rating:
16
Series:
GPG16M
Tonnage:
5 ton
Voltage Rating:
208/230 VAC
- Durable, corrosion-resistant T-140 aluminized steel tubular heat exchanger
- High-efficiency compressor
- Aluminum-copper evaporator coil
- Two-speed ECM indoor blower motor
- Two-stage gas valve, natural gas with easy conversion to propane
- Power-assisted combustion
- Direct spark ignition system includes a microprocessor based control for the entire ignition sequence, all blower operation and all safety circuits complete with self-diagnostics
- Aluminum foil-facing internal insulation reinforced with fiberglass scrim cabinet
- Horizontal or down flow applications
- Convenient access panels cabinet
- One-roof curb fits all units cabinet
- Loss-of-charge protection and high-pressure switch
- Bottom, 2 in high base rails for easy handling cabinet
- All blower operation and all safety circuits complete with self-diagnostics
- All models comply with California low NOx emission standards
- All models fit a standard-size pick-up truck cabinet
- When properly anchored, meets the 2010 Florida building code unit integrity requirements for hurricane-type winds
- 20 years heat exchanger, 10 years parts limited warranty
Product Details
Goodman® Self Contained Package Gas/Electric Unit, Series: GPG16M, 58500 Btu/hr Cooling, 138000 Btu/hr Heating Input BTU, 208/230 VAC, 3/4 hp, 1050 rpm Rotational Speed, 60 Hz, 1 ph Phase, Scroll Compressor, Multi-Position, 1300 cfm, 16 SEER, 0.81 AFUE, 5 ton Tonnage, R-410A Refrigerant, 78 dBA Decibel Rating, 50 A Fuse Rating, Heavy Gauge Steel, Zinc-Coated, Powder-Painted, 73.945 in W x 48.196 in D x 42.84 in H
Attributes
AFUE Rating:Â .81
CFM Rating:Â 1300 cfm
Compressor Type:Â Scroll
Configuration:Â Multi-Position
Decibel Rating:Â 78 dBA
Dimensions:Â 73.945 in W x 48.196 in D x 42.84 in H
Finish:Â Zinc-Coated, Powder-Painted
Frequency Rating:Â 60 Hz
Fuse Rating:Â 50 A
HP Rating:Â 3/4 hp
Input BTU Rating:Â 58500 Btu/hr Cooling, 138000 Btu/hr Heating
Material:Â Heavy Gauge Steel
Phase:Â 1 ph
Refrigerant Type:Â R-410A
Rotational Speed:Â 1050 rpm
SEER Rating:Â 16
Series:Â GPG16M
Tonnage:Â 5 ton
Voltage Rating:Â 208/230 VAC
Features
- Durable, corrosion-resistant T-140 aluminized steel tubular heat exchanger
- High-efficiency compressor
- Aluminum-copper evaporator coil
- Two-speed ECM indoor blower motor
- Two-stage gas valve, natural gas with easy conversion to propane
- Power-assisted combustion
- Direct spark ignition system includes a microprocessor based control for the entire ignition sequence, all blower operation and all safety circuits complete with self-diagnostics
- Aluminum foil-facing internal insulation reinforced with fiberglass scrim cabinet
- Horizontal or down flow applications
- Convenient access panels cabinet
- One-roof curb fits all units cabinet
- Loss-of-charge protection and high-pressure switch
- Bottom, 2 in high base rails for easy handling cabinet
- All blower operation and all safety circuits complete with self-diagnostics
- All models comply with California low NOx emission standards
- All models fit a standard-size pick-up truck cabinet
- When properly anchored, meets the 2010 Florida building code unit integrity requirements for hurricane-type winds
- 20 years heat exchanger, 10 years parts limited warranty
