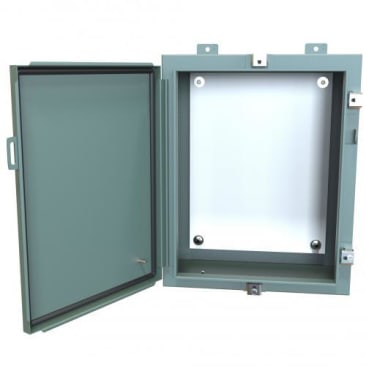

HAMMOND 1418N4C8 N4 SERIES SINGLE DOOR ENCLOSURES NEMA 4
MFR Part #: 1418N4C8
SKU #: 1032535
Brand: Hammond®
UPC: 62398037890
Hammond® 1418N4C8 Enclosure With Panel, 16 in W x 8 in D x 20 in H, NEMA 3R/4/12/13/IP66 NEMA Rating, 14 ga Mild Steel
1 Year
For use as instrument enclosures, electric, hydraulic or pneumatic control housings and electrical junction boxes or terminal wiring enclosures
CSA Certified | CE Marking | JIC EGP-1-1967 | IEC 60529 | RoHS Compliant | UL 508A
Product Details
Attributes
Features
Resources
Hammond® Enclosure, Series: 1418 N4 Series, 16 in Width, 8 in Depth, 20 in Height, NEMA 3R/4/12/13/IP66 NEMA Rating, Hinged Cover, 17 in L x 13 in W Panel, Lock: Padlock, 2560 cu-in Capacity, Wall Mounting, 14 ga Mild Steel, Powder Coated, Gray
Color:Gray
Country Of Origin:Canada
Cover Type:Hinged
Depth:8 in
Finish:Powder Coated
Height:20 in
Lock:Padlock
Mounting Type:Wall
Width:16 in
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Door and body stiffeners are provided in larger enclosures for extra rigidity
- Welded brackets provide for enclosure mounting
- Formed lip on door and enclosure excludes flowing liquid and contaminants
- Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin
- Door is secured with easily operated stainless steel clamps
- Provision for padlocking
- Seamless poured-in place gasket
- Collar studs are provided for mounting inner panels
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- A literature pocket is provided for the inside of the door
- Provides protection where equipment may be hosed down or otherwise be very wet or in outdoor applications for full weather protection
Product Details
Hammond® Enclosure, Series: 1418 N4 Series, 16 in Width, 8 in Depth, 20 in Height, NEMA 3R/4/12/13/IP66 NEMA Rating, Hinged Cover, 17 in L x 13 in W Panel, Lock: Padlock, 2560 cu-in Capacity, Wall Mounting, 14 ga Mild Steel, Powder Coated, Gray
Attributes
Color: Gray
Country Of Origin: Canada
Cover Type: Hinged
Depth: 8 in
Finish: Powder Coated
Height: 20 in
Lock: Padlock
Mounting Type: Wall
Width: 16 in
Features
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Door and body stiffeners are provided in larger enclosures for extra rigidity
- Welded brackets provide for enclosure mounting
- Formed lip on door and enclosure excludes flowing liquid and contaminants
- Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin
- Door is secured with easily operated stainless steel clamps
- Provision for padlocking
- Seamless poured-in place gasket
- Collar studs are provided for mounting inner panels
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- A literature pocket is provided for the inside of the door
- Provides protection where equipment may be hosed down or otherwise be very wet or in outdoor applications for full weather protection
