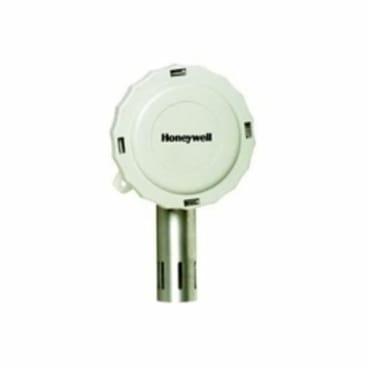

HONEYWELL H7635C2015/U OUTDOOR HUMIDITY SENSOR
Product Details
Attributes
Features
Resources
Honeywell Humidity and Temperature Sensor, Series: H7635C, 18 to 28 VAC/18 to 40 VDC, Outdoor Mount, 3 in Width, 7/8 in D, 4-9/16 in Height, Domestic
The H7625, H7635, and H7655 are highly accurate, stable humidity transducers designed for use with HVAC controllers such as the T7350 Thermostat, T775U Remote Humidity Controller, and W7760 Direct Digital Controllers. The Ceramic Technology humidity sensor is not affected by condensation and provides excellent long-term stability.
- Ceramic technology overcomes the limitations of other resistance based humidity sensors that use water soluble polymer coatings
- Zero and span trimmers, and increment/decrement recalibration feature
- All humidity sensors use the same enclosure as the T7770 sensor, except the H7655A, which uses the T7047-like enclosure
- Use with: excel 15, excel 10, T7350 commercial programmable thermostat
- 10 to 90% RH operating humidity
- 20K Ohm NTC sensor
- 32 to 125 deg F operating temperature
- -40 to 160 deg F shipping and storage
- 4 to 20 mA, 0 to 5 VDC/ 0 to 10 VDC selectable humidity output, 20K Ohm NTC temperature
- 0 to 100% RH sensor range
- +/- to 3% from 20 to 95% RH accuracy
Product Details
Honeywell Humidity and Temperature Sensor, Series: H7635C, 18 to 28 VAC/18 to 40 VDC, Outdoor Mount, 3 in Width, 7/8 in D, 4-9/16 in Height, Domestic
The H7625, H7635, and H7655 are highly accurate, stable humidity transducers designed for use with HVAC controllers such as the T7350 Thermostat, T775U Remote Humidity Controller, and W7760 Direct Digital Controllers. The Ceramic Technology humidity sensor is not affected by condensation and provides excellent long-term stability.
Attributes
Features
- Ceramic technology overcomes the limitations of other resistance based humidity sensors that use water soluble polymer coatings
- Zero and span trimmers, and increment/decrement recalibration feature
- All humidity sensors use the same enclosure as the T7770 sensor, except the H7655A, which uses the T7047-like enclosure
- Use with: excel 15, excel 10, T7350 commercial programmable thermostat
- 10 to 90% RH operating humidity
- 20K Ohm NTC sensor
- 32 to 125 deg F operating temperature
- -40 to 160 deg F shipping and storage
- 4 to 20 mA, 0 to 5 VDC/ 0 to 10 VDC selectable humidity output, 20K Ohm NTC temperature
- 0 to 100% RH sensor range
- +/- to 3% from 20 to 95% RH accuracy
