ILSCO GPL-10 1/2 OR 3/4 2/0SOL 250MCM BRONZE GROUND CLAMP CONN
MFR Part #: GPL-10
SKU #: 1059979
Brand: ILSCO®
UPC: 783669262186

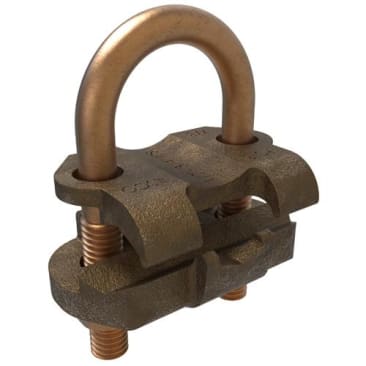

ILSCO® ClearChoice® GPL-10 Type GPL U-Bolt Ground Clamp, 7/8 to 1 in Rod, 2/0 AWG to 250 kcmil Conductor, Cast Bronze
For grounding copper connector, pipes, rods, rebar and fence posts
CSA File No. LR-29601 | UL 467 for Direct Burial in Earth or Concrete | UL 667P File No. E34440 | PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Product Details
Attributes
Features
Resources
ILSCO® ClearChoice® Ground Clamp, Type GPL U-Bolt, 1/2 to 3/4 in Pipe, 7/8 to 1 in Rod, 0.84 to 1.05 in OD, Solid Copper Conductor, 2/0 AWG to 250 kcmil Conductor, Parallel/90 deg Cable Connection, Cast Bronze, 2.625 in L x 1.563 in W x 3.265 in H Dimensions
Conductor Size:
2/0 AWG to 250 kcmil
Conductor Type:
Solid Copper
Connection Type:
Parallel/90 deg Cable
Dimensions:
2.625 in L x 1.563 in W x 3.265 in H
Material:
Cast Bronze
Outside Diameter:
0.84 to 1.05 in
Pipe Size:
1/2 to 3/4 in
Rod Size:
7/8 to 1 in
Type:
Type GPL U-Bolt
- Components are cast or forged from copper alloy providing maximum conductivity
- Specially designed spacer which affords more positive contact area
- Range taking permitting inventories to be kept to a minimum
- Re-usable providing efficient use and flexibility in the field
- For parallel and 90 deg copper conductor connections to pipes, rods, rebar and fence posts
- Corrosion resistant for longevity
- Optimizes cost and flexibility for rework applications
- Ensures a safe and reliable grounding connection
Product Details
ILSCO® ClearChoice® Ground Clamp, Type GPL U-Bolt, 1/2 to 3/4 in Pipe, 7/8 to 1 in Rod, 0.84 to 1.05 in OD, Solid Copper Conductor, 2/0 AWG to 250 kcmil Conductor, Parallel/90 deg Cable Connection, Cast Bronze, 2.625 in L x 1.563 in W x 3.265 in H Dimensions
Attributes
Conductor Size: 2/0 AWG to 250 kcmil
Conductor Type: Solid Copper
Connection Type: Parallel/90 deg Cable
Dimensions: 2.625 in L x 1.563 in W x 3.265 in H
Material: Cast Bronze
Outside Diameter: 0.84 to 1.05 in
Pipe Size: 1/2 to 3/4 in
Rod Size: 7/8 to 1 in
Type: Type GPL U-Bolt
Features
- Components are cast or forged from copper alloy providing maximum conductivity
- Specially designed spacer which affords more positive contact area
- Range taking permitting inventories to be kept to a minimum
- Re-usable providing efficient use and flexibility in the field
- For parallel and 90 deg copper conductor connections to pipes, rods, rebar and fence posts
- Corrosion resistant for longevity
- Optimizes cost and flexibility for rework applications
- Ensures a safe and reliable grounding connection
