KITZ 052-12600 2-1/2 CXC CL125 BRZ SB RS MS GLOBE VLV 12
MFR Part #: 12-212
SKU #: 1180224
Brand: KITZ
UPC: 400008662529

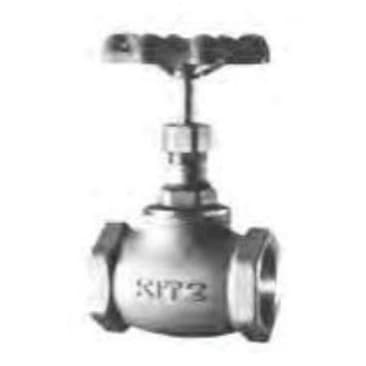

KITZ 12 Series C125C 12-212 Raising Stem Globe Valve, 2-1/2 in Nominal, 200 psi, Bronze Body
ANSI B1.20.1 Specified | ASTM B62, ASTM B283, ASTM B283, ASTM B86 Specified | MSS SP-80, Type 1 Compliant
Product Details
Attributes
Features
Resources
KITZ Raising Stem Globe Valve, 12 Series, Model: C125C, 2-1/2 in Nominal, Solder Connection, 200 psi, Pressure Class: 125 lb, Gas, Oil, Steam, Water Media, 5.39 in Top to Inlet Center, Bronze Body, Brass Stem, Bronze Disc
Nominal Size:
2-1/2 in
Pressure Class:
125 lb
Body Material:
Bronze
Connection Type:
Solder
Disc Material:
Bronze
Media:
Gas, Oil, Steam, Water
Model:
C125C
Pressure Rating:
200 psi
Series:
12 Series
Stem Material:
Brass
Top to Inlet Center:
5.39 in
- Screw-in bonnet
- Inside screw
- Rising stem integral seat
- Solid wedge disc
- Cast bronze bonnet, forged brass locknut, packing nut, brass rod gland, aramid fibers with graphite gland packing, aluminum die-cast hand wheel, brass rod wheel nut, aluminum name plate
Product Details
KITZ Raising Stem Globe Valve, 12 Series, Model: C125C, 2-1/2 in Nominal, Solder Connection, 200 psi, Pressure Class: 125 lb, Gas, Oil, Steam, Water Media, 5.39 in Top to Inlet Center, Bronze Body, Brass Stem, Bronze Disc
Attributes
Nominal Size: 2-1/2 in
Pressure Class: 125 lb
Body Material: Bronze
Connection Type: Solder
Disc Material: Bronze
Media: Gas, Oil, Steam, Water
Model: C125C
Pressure Rating: 200 psi
Series: 12 Series
Stem Material: Brass
Top to Inlet Center: 5.39 in
Features
- Screw-in bonnet
- Inside screw
- Rising stem integral seat
- Solid wedge disc
- Cast bronze bonnet, forged brass locknut, packing nut, brass rod gland, aramid fibers with graphite gland packing, aluminum die-cast hand wheel, brass rod wheel nut, aluminum name plate
