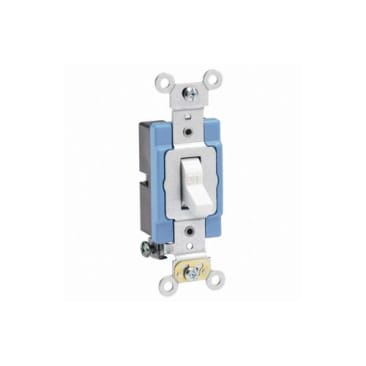

LEVITON 1201-2W Image 1

LEVITON 1201-2W 15A 120/277V 1-POLE TOGGLE SWITCH WHITE

MFR Part #:Ā 1201-2W
SKU #:Ā 0770811
Brand:Ā LevitonĀ®
UPC:Ā 078477240588
LevitonĀ® 1201-2W Self-Grounding AC Quiet Toggle Switch, 120/277 VAC, 15 A, 1/2, 2 hp Power Rating, SP Contact
10 Years Limited
Commercial Applications
RoHS Compliant | ANSI C73 | CSA C22.2 No. 111 File No. 152105 | NOM 057 | Federal Specification WS896E File No. E7458 | UL 20 | UL94 V-2 Flammability Rating | ANSI C-73 | UL Fed Spec WS896E File No. E7458

LevitonĀ®, 1201-2W, AC Quiet Toggle Switch, Self-Grounding, 120/277 VAC, 15 A, 1/2, 2 hp Power, SP Contact Configuration, 1/2 hp at 120 VAC, 2 hp at 240 VAC Contact, 1 Pole, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Back/Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoplastic, White, Environmental Conditions: -40 to 65 deg C Operating Temperature, 46 in H x 1.31 in W x 13 in D Dimensions

LevitonĀ® industrial grade AC toggle switches for extra heavy duty applications represent top-of-the-line quality and peak performance. LevitonĀ® uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.

Product Details

LevitonĀ®, 1201-2W, AC Quiet Toggle Switch, Self-Grounding, 120/277 VAC, 15 A, 1/2, 2 hp Power, SP Contact Configuration, 1/2 hp at 120 VAC, 2 hp at 240 VAC Contact, 1 Pole, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Back/Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoplastic, White, Environmental Conditions: -40 to 65 deg C Operating Temperature, 46 in H x 1.31 in W x 13 in D Dimensions

LevitonĀ® industrial grade AC toggle switches for extra heavy duty applications represent top-of-the-line quality and peak performance. LevitonĀ® uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.

Attributes

Amperage Rating:Ā 15 A
Country Of Origin:Ā US
Number of Poles:Ā 1
Voltage Rating:Ā 120/277 VAC
Actuator:Ā Toggle
Color:Ā White
Contact Configuration:Ā SP
Contact Rating:Ā 1/2 hp at 120 VAC, 2 hp at 240 VAC
Dimensions:Ā 46 in H x 1.31 in W x 13 in D
Enclosure:Ā NEMA WD-1/WD-6
Environmental Conditions:Ā -40 to 65 deg C Operating Temperature
Material:Ā Thermoplastic
Mounting:Ā Surface
Operating Cycles:Ā 50000 Cycles
Power Rating:Ā 1/2, 2 hp
Terminal Type:Ā Back/Side Wire
Type:Ā Self-Grounding

Features

  • Heavy gauge copper alloy brush arm for superior performance
  • Large silver alloy contacts for long life prevent sticking, welding and excessive pitting
  • Fully enclosed switch mechanism in rugged housing for strength, tracking and arc resistance
  • 1/2 hp at 120 VAC, 2 hp at 240 to 277 VAC power rating
  • Self-grounding clip (self grounding when used with a grounded metal wall box)
