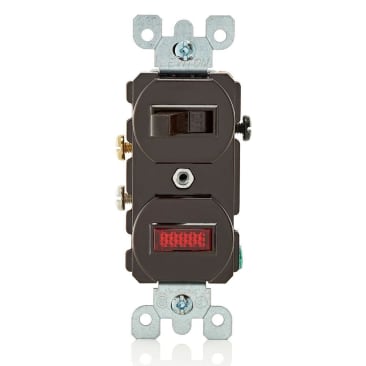

LEVITON 5226 Image 1

LEVITON 5226 15A 120V COMMERCIAL DUPLEX TOGGLE SWITCH/PILOT LIGHT COMBO BROWN

MFR Part #: 5226
SKU #: 1292822
Brand: Leviton®
UPC: 7847722680
Leviton® 5226 Duplex Grounding AC Combination Switch, 120/125 V AC, 15 A
2 Years
Commercial Applications
UL 20/E7458|NOM Certified|NEMA WD1/WD6|ANSI C73|CSA C22.2 No.111/152105/LR3413|UL94 V-2 Flammability Rating

Leviton® AC Combination Switch, Duplex Grounding, 120/125 V AC, 15 A, 1 Pole, Neon Pilot Lamp, Toggle Action, NEMA 5-15R Enclosure, Surface Mounting, Side Wire Terminal, -40 to 120 deg C, Thermoplastic, Brown, 4.2 in H x 1.62 in W x 16 in D Dimensions

With Leviton® extensive assortment of combination devices, you can fill a 1-gang space with two switches, a switch and receptacle, even a switch and GFCI. From sensor guide lights to multi-purpose styles and tamper resistant receptacles, we accommodate your every need. These devices come in a range of colors and are backed by a limited 2-years warranty. Built to last and designed to save space, these attractively styled devices are at home in any setting.

Product Details

Leviton® AC Combination Switch, Duplex Grounding, 120/125 V AC, 15 A, 1 Pole, Neon Pilot Lamp, Toggle Action, NEMA 5-15R Enclosure, Surface Mounting, Side Wire Terminal, -40 to 120 deg C, Thermoplastic, Brown, 4.2 in H x 1.62 in W x 16 in D Dimensions

With Leviton® extensive assortment of combination devices, you can fill a 1-gang space with two switches, a switch and receptacle, even a switch and GFCI. From sensor guide lights to multi-purpose styles and tamper resistant receptacles, we accommodate your every need. These devices come in a range of colors and are backed by a limited 2-years warranty. Built to last and designed to save space, these attractively styled devices are at home in any setting.

Attributes

Amperage Rating15 A
Voltage Rating120/125 V AC
ActionToggle
ColorBrown
Dimensions4.2 in H x 1.62 in W x 16 in D
EnclosureNEMA 5-15R
Lamp TypeNeon Pilot
MaterialThermoplastic
MountingSurface
Number of Poles1
Temperature Rating-40 to 120 deg C
Terminal TypeSide Wire
TypeDuplex Grounding

Features

  • AC quiet switches have silver cadmium oxide contacts and receptacles have double wire contacts for maximum conductivity
  • Terminal screws accept up to #12 AWG copper or copper clad wire
  • Fits standard wallboxes
  • Break-OFF tabs on devices with switches permit conversion to separate feeds
