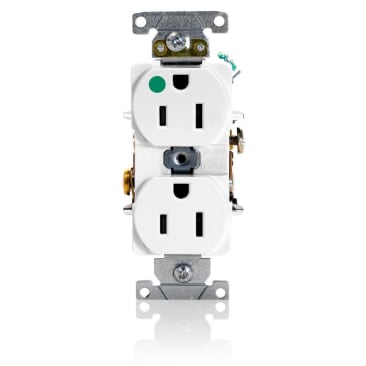

LEVITON 8200-HW 15A 125V 2-POLE 3-WIRE HOSPITAL BACK & SIDE WIRED DUPLEX RECEPTACLE WHITE
Product Details
Attributes
Features
Resources
Leviton®, 8200-HW, Straight Blade Duplex Receptacle, Heavy Duty, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Hospital Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, White, 4.06 in H x 1.51 in W x 1.18 in D Dimensions
All Leviton® hospital grade receptacles undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high abuse tolerance, including health care facilities, manufacturing plants and schools.
- Impact resistant thermoplastic nylon cover and body
- Smooth face does not collect dirt
- Four corner latches securely fasten face
- Extra heavy duty triple-wipe, brass T contacts for superior contact and conductivity
- High-performance brass no 10-32 terminal screws to reduce conductor oxidation
- Back and side wire ground termination brass strap version
- Back and side wiring options
- Break-off tabs for easy two-circuit conversion
- Apron barrier to prevent accidental contact between terminal screw heads and metal box
- Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity
- Power Indication™ provides permanent green dot lens with 100000 hr LED status indicator
- Wallbox mounting
- Self-grounding
- 1-phase
- 2000 VAC minimum dielectric strength
- Galvanized steel strap
- 14 to 10 AWG wire terminal
