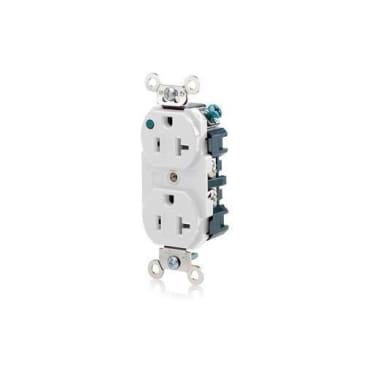

LEVITON 8300-PLW Image 1

LEVITON 8300-PLW 20A 125V 2-POLE 3-WIRE HOSPITAL GRADE DUPLEX RECEPTACLE WITH PILOT LIGHT WHITE

MFR Part #: 8300-PLW
SKU #: 1292732
Brand: Leviton®
UPC: 078477109069
Leviton® 8300-PLW 1-Phase Duplex Extra Heavy Duty Power Indication Self-Grounding Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, White
Commercial Applications
NEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42 File No. 152105|UL Federal Specification W-C-596 File No. E13399|UL 498HG File No. E13399|UL94 V-2 Flammability Rating

Leviton®, 8300-PLW, Straight Blade Receptacle, 1-Phase Duplex Extra Heavy Duty Power Indication Self-Grounding, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, White, 46 in H x 1.53 in W x 1.11 in D Dimensions

All Leviton® hospital grade receptacles undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high abuse tolerance, including health care facilities, manufacturing plants and schools.

Product Details

Leviton®, 8300-PLW, Straight Blade Receptacle, 1-Phase Duplex Extra Heavy Duty Power Indication Self-Grounding, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, White, 46 in H x 1.53 in W x 1.11 in D Dimensions

All Leviton® hospital grade receptacles undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high abuse tolerance, including health care facilities, manufacturing plants and schools.

Attributes

Amperage Rating: 20 A
Voltage Rating: 125 V AC
Color: White
Dimensions: 46 in H x 1.53 in W x 1.11 in D
Enclosure: NEMA WD-1/WD-6
Grade: Commercial
Horsepower: 1 hp
Material: Thermoplastic
NEMA Rating: NEMA 5-20R
Number of Poles: 2
Number of Wires: 3
Temperature Rating: -40 to 60 deg C
Terminal Type: Back/Side Wire
Type: 1-Phase Duplex Extra Heavy Duty Power Indication Self-Grounding

Features

  • Impact resistant thermoplastic nylon cover and body
  • Four corner latches securely fasten face
  • Extra heavy duty triple-wipe, brass T contacts for superior contact and conductivity
  • High performance brass #10-32 terminal screws to reduce conductor oxidation
  • Back and side wire ground termination brass strap version
  • Back and side wiring options
  • Break-OFF tabs allow easy 2-circuit conversion
  • Apron barrier to prevent accidental contact between terminal screw heads and metal box
  • Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity
  • Power Indication™ provides permanent green dot lens with 100000 hr LED status indicator
  • Smooth face does not collect dirt
