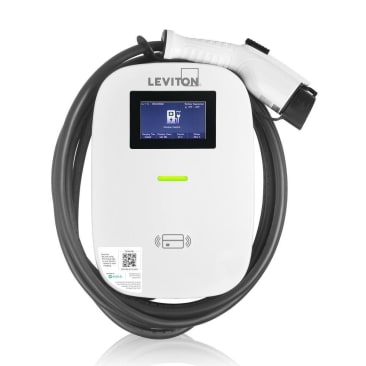

LEVITON EV80S 80A ELECTRIC VEHICLE CHARGING STATION WITH 4G & LCD SCREEN
MFR Part #: EV80S
SKU #: 1271843
Brand: Leviton®
UPC: 078477000557
Leviton® EV80S EV Series Level 2 Electric Vehicle Charging Station, 208/240 VAC, 80 A, 1 Phase, 7 AWG Wire, NEMA 3R Enclosure
3 Years Limited
Mounting Hardware, Mounting Bracket and Pre-Attached Input Cable
Indoor, Outdoor, Residential, Commercial, Fleet and Public Applications
UL 2594/2231-1/2231-2/2251/62/991/1998/840 Listed | NFPA 70 Article 625 Listed | CSA C22.2 No. 280 Certified | OCPP 1.6 Compliant | ENERGY STAR Certified | ISO 9001/2015 Certified
Product Details
Attributes
Features
Resources
Leviton®, EV80S, Electric Vehicle Charging Station, Level 2, Series: EV Series, 208/240 VAC, 80 A, 1 ph, 7 AWG Wire, Ground/Bottom Feed, 20 mA Short Circuit, SAE J1772 Connection, NEMA 3R Enclosure, Plastic, Wall/Pedestal Mounting, -30 to 50 deg C Operating
Amperage Rating:
80 A
Country Of Origin:
China
Connection Type:
SAE J1772
Enclosure Type:
NEMA 3R
Feed Type:
Ground/Bottom
Material:
Plastic
Mounting Type:
Wall/Pedestal
Operating Temperature:
-30 to 50 deg C
Phase:
1
Series:
EV Series
Short Circuit Current Rating:
20 mA
Type:
Level 2
Voltage Rating:
208/240 VAC
Wire Size:
7 AWG
- Multi-station, Multi-site Management For Site Hosts - Featuring AmpUp Charging Station Management Software, these stations include real time analytics, the ability to set pricing groups and collect revenue, smart scheduling, advanced access control, RFID, power load management, automated reporting and more
- Improved Experience For Ev Drivers - The AmpUp software makes EV charging effortless for drivers by providing the ability to locate charging stations, reserve spots, initiate sessions and more
- The Brand You Trust - Leviton has been in homes for over a century and electrifying vehicles for over a decade. Charge at ease with UL/Energy Star Certified stations supported by a 24/7 dedicated team
- For Any Application - featuring a water-resistant enclosure rated NEMA Type 3R and a cable designed to prevent freezing and cracking in extreme weather, you can install both indoors and outdoors
- Easy to Install - benefit from major times savings with a pre-attached input cable and included mounting hardware. Note this station is hardwired and requires a 100 Amp breaker
- Charge Any Electric Vehicle - with an industry standard SAE J1772 cable, the EV Series can charge any EV, including Audi, BMW, Ford, Honda, Subaru and even Tesla with a Tesla-supplied adapter
Product Details
Leviton®, EV80S, Electric Vehicle Charging Station, Level 2, Series: EV Series, 208/240 VAC, 80 A, 1 ph, 7 AWG Wire, Ground/Bottom Feed, 20 mA Short Circuit, SAE J1772 Connection, NEMA 3R Enclosure, Plastic, Wall/Pedestal Mounting, -30 to 50 deg C Operating
Attributes
Amperage Rating: 80 A
Country Of Origin: China
Connection Type: SAE J1772
Enclosure Type: NEMA 3R
Feed Type: Ground/Bottom
Material: Plastic
Mounting Type: Wall/Pedestal
Operating Temperature: -30 to 50 deg C
Phase: 1
Series: EV Series
Short Circuit Current Rating: 20 mA
Type: Level 2
Voltage Rating: 208/240 VAC
Wire Size: 7 AWG
Features
- Multi-station, Multi-site Management For Site Hosts - Featuring AmpUp Charging Station Management Software, these stations include real time analytics, the ability to set pricing groups and collect revenue, smart scheduling, advanced access control, RFID, power load management, automated reporting and more
- Improved Experience For Ev Drivers - The AmpUp software makes EV charging effortless for drivers by providing the ability to locate charging stations, reserve spots, initiate sessions and more
- The Brand You Trust - Leviton has been in homes for over a century and electrifying vehicles for over a decade. Charge at ease with UL/Energy Star Certified stations supported by a 24/7 dedicated team
- For Any Application - featuring a water-resistant enclosure rated NEMA Type 3R and a cable designed to prevent freezing and cracking in extreme weather, you can install both indoors and outdoors
- Easy to Install - benefit from major times savings with a pre-attached input cable and included mounting hardware. Note this station is hardwired and requires a 100 Amp breaker
- Charge Any Electric Vehicle - with an industry standard SAE J1772 cable, the EV Series can charge any EV, including Audi, BMW, Ford, Honda, Subaru and even Tesla with a Tesla-supplied adapter
