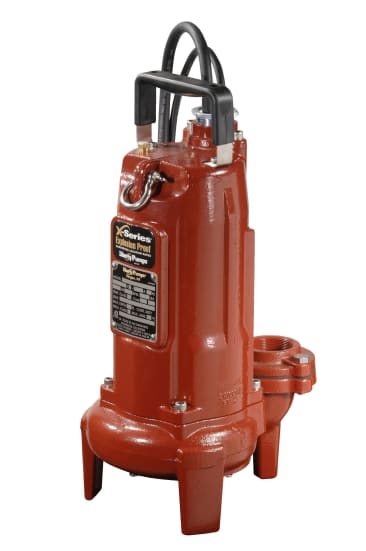

LIBERTY XLE51M-2 Image 1

LIBERTY XLE51M-2 1/2HP 115V 1PH EXPLOSION PROOF SEWAGE PUMP

MFR Part #: XLE51M-2
SKU #: 1278631
Brand: Liberty Pumps®
UPC: 671812132748
Liberty Pumps® XLE51M-2 XLE50, 1/2 hp, 115 V AC, 2 in, 3 in Outlet, Cast Iron, 10.5 A Full Load/46.7 A Locked Rotor, 1 Phase
3 Years
cCSAus Certified | Class 1 Division 1 Groups C/D Certified | Class 1/Zone 1 Groups IIA/IIB Certified | FM Approved | SSPMA Certified | PROP65: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Liberty Pumps®, XLE51M-2, Series: XLE50, 170 gpm Flow Rate, 2 in, 3 in Outlet, 27 ft Maximum Head, 1/2 hp, 115 V AC, 10.5 A Full Load/46.7 A Locked Rotor, 60 Hz Frequency, 1 ph, 1725 rpm Motor, SOOW 25 ft Cord, Cast Iron 2-Vane Semi-Open Impeller, 221 deg F Thermal Overload, Ball Bearing, Cast Iron, 13 in W x 21.8 in H Dimensions

Liberty's XLE50 series cast iron sewage pump is an explosion-proof pump for use in hazardous locations. It is Class 1, Division 1 Groups C and D and Class 1, Zone 1 and Group IIA and IIB certified. Providing a dual 2 or 3 in discharge, 2 in solids-handling and 2 vane semi-open cast iron impeller. A bronze impeller is optional for this model.

Product Details

Liberty Pumps®, XLE51M-2, Series: XLE50, 170 gpm Flow Rate, 2 in, 3 in Outlet, 27 ft Maximum Head, 1/2 hp, 115 V AC, 10.5 A Full Load/46.7 A Locked Rotor, 60 Hz Frequency, 1 ph, 1725 rpm Motor, SOOW 25 ft Cord, Cast Iron 2-Vane Semi-Open Impeller, 221 deg F Thermal Overload, Ball Bearing, Cast Iron, 13 in W x 21.8 in H Dimensions

Liberty's XLE50 series cast iron sewage pump is an explosion-proof pump for use in hazardous locations. It is Class 1, Division 1 Groups C and D and Class 1, Zone 1 and Group IIA and IIB certified. Providing a dual 2 or 3 in discharge, 2 in solids-handling and 2 vane semi-open cast iron impeller. A bronze impeller is optional for this model.

Attributes

Country Of Origin: US
Horsepower: 1/2 hp
Maximum Head: 27 ft
Outlet Size: 2 in, 3 in
Voltage Rating: 115 V AC
Amperage Rating: 10.5 A Full Load/46.7 A Locked Rotor
Bearing Type: Ball
Cord Type: SOOW 25 ft
Dimensions: 13 in W x 21.8 in H
Flow Rate: 170 gpm
Frequency Rating: 60 Hz
Impeller Type: Cast Iron 2-Vane Semi-Open
Material: Cast Iron
Motor Speed: 1725 rpm
Phase: 1
Series: XLE50
Temperature Rating: 221 Deg F Thermal Overload

Features

  • Explosion-proof for hazardous locations
  • Heavy cast iron construction
  • Dual shaft seals
  • Seal fail sensor
  • 416 Stainless steel rotor shaft
  • 25 in Quick-connect power cord

Resources

Instruction/Installation Manual
Specification Sheet
