LITELINE RA3-7G-27K-90BK Image 1

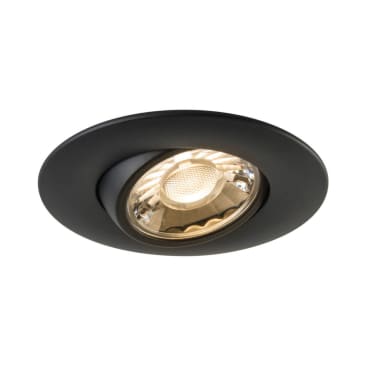

LITELINE RA3-7G-27K-90BK 3 LUNA GIMBAL RECESSED FIXTURE BLK

MFR Part #: RA3-7G-27K-90BK
SKU #: 1222612
Brand: Liteline
UPC: 771250258854
Liteline RA3-7G-27K-90BK Gimbal Fixture, 100 to 135 V, LED Bulb, 520 Lumens, Aluminum Fixture, Black Fixture
Lifetime
(2) Spring Loaded Clip
For insulated ceiling
California Title 24 Compliant | cETLus Listed | ENERGY STAR Certified | IC Rated | JA8 Certified | Wet Location Listed

Liteline Gimbal Fixture, 100 to 135 V, 50 Hz, 60 Hz, LED Bulb, 7 W Bulb Wattage, 520 Lumens, 2700 K, 90 CRI, Dimmable, Aluminum Fixture, Black Fixture, Ceiling, Recessed Mounting, 3-11/32 in Dia x1-7/8 in H, 36000 hr Average Life

The RA3-7G is a 7 W 3 in gimbal recessed light fixture for retrofit application. It is a high performance, easy to install downlight solution that offers good light output, energy efficiency and streamlined design. Suitable for wet locations.

Product Details

Liteline Gimbal Fixture, 100 to 135 V, 50 Hz, 60 Hz, LED Bulb, 7 W Bulb Wattage, 520 Lumens, 2700 K, 90 CRI, Dimmable, Aluminum Fixture, Black Fixture, Ceiling, Recessed Mounting, 3-11/32 in Dia x1-7/8 in H, 36000 hr Average Life

The RA3-7G is a 7 W 3 in gimbal recessed light fixture for retrofit application. It is a high performance, easy to install downlight solution that offers good light output, energy efficiency and streamlined design. Suitable for wet locations.

Attributes

Color Temperature: 2700 K
Dimensions: 3-11/32 in Dia x1-7/8 in H
Lumens: 520 Lumens
Mounting Type: Ceiling, Recessed
Additional Information: 36000 hr Average Life
Bulb Type: LED
Bulb Wattage: 7 W
Color Rendering Index (CRI): 90
Dimmable/Non-Dimmable: Dimmable
Fixture Finish: Black
Fixture Material: Aluminum
Frequency Rating: 50 Hz, 60 Hz
Voltage Rating: 100 to 135 V

Features

  • Durable airtight aluminum body with adjustable gimbal, includes anodized blue heat sink to provide maximum airflow for the led light source
  • This general application light fixture features a 7 W LED module that maintains uniform intensity producing up-to 650 Lumens, with a typical 90 CRI
  • Dimming 100 to 10% dimming capability, this fixture is compatible with industry standard TRIAC/ELV dimmers
  • Spring loaded clips to attached to any ceiling material
  • Extruded aluminum hardwire box with 170 mA dimmable class II electronic LED driver with 100 to 135 VAC input, includes an 18 in cable from driver to fixture
  • Three "Quick connect" push-in terminals for fast and easy wiring
