LITELINE SLMT4-8W30K 4 INCH SLIMLED MULTI 30K
Product Details
Attributes
Features
Resources
Liteline Recessed Lighting Fixture, Round, Series: SLIMLED™ MULTI, 100/135 V AC, 40 mA, 8 W Lamp, 500 to 1499 Lumens/W Light Output, 50000 hr Average Life, 3000 K Color Temperature, 90 CRI, 500 Lumens, Plastic Housing Material, 4-7/8 in Dia x 1 in H Dimensions
The SLMT4-8W is an 8 W 4 in round downlight for retrofit application onto existing 4 in recessed housings or 4 in octagon box. It is a high performance, easy to install residential grade downlight solution that offers good light output, energy-efficiency and streamlined design. Suitable for wet locations.

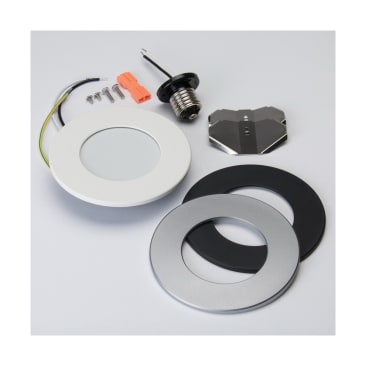

- Durable airtight plastic body with mounting holes and included butterfly clips
- On-face magnets allows for securely attaching one of three included dead front magnetic faceplates (White, black and Silver)
- This general application light fixture features an 8 W LED module that maintains uniform intensity producing up to 540 Lumens, with a typical CRI of 90
- 100 to 10% dimming capability
- This fixture is compatible with industry standard forward/reverse phase dimmers, TRIAC/ELV dimmers
- The fixture lens provides 110 deg beam spread
- Can be mounted to a compatible 4 in recessed housing via included butterfly clips or attached to an industry standard 4 in octagon box with minimum depth of 1-1/2 in (40 mm) via mounting holes
- Compatible recessed housings - RF401, RF402, RF405 series
- Built-in on board driver with 40 mA output and 100 to 135 VAC input
- Quick-connect push-in terminals for fast and easy wiring
- -30 to 40 deg C operating temperature
- Fire-rated when used in a fire-rated octagon box
Product Details
Liteline Recessed Lighting Fixture, Round, Series: SLIMLED™ MULTI, 100/135 V AC, 40 mA, 8 W Lamp, 500 to 1499 Lumens/W Light Output, 50000 hr Average Life, 3000 K Color Temperature, 90 CRI, 500 Lumens, Plastic Housing Material, 4-7/8 in Dia x 1 in H Dimensions
The SLMT4-8W is an 8 W 4 in round downlight for retrofit application onto existing 4 in recessed housings or 4 in octagon box. It is a high performance, easy to install residential grade downlight solution that offers good light output, energy-efficiency and streamlined design. Suitable for wet locations.
Attributes
Features
- Durable airtight plastic body with mounting holes and included butterfly clips
- On-face magnets allows for securely attaching one of three included dead front magnetic faceplates (White, black and Silver)
- This general application light fixture features an 8 W LED module that maintains uniform intensity producing up to 540 Lumens, with a typical CRI of 90
- 100 to 10% dimming capability
- This fixture is compatible with industry standard forward/reverse phase dimmers, TRIAC/ELV dimmers
- The fixture lens provides 110 deg beam spread
- Can be mounted to a compatible 4 in recessed housing via included butterfly clips or attached to an industry standard 4 in octagon box with minimum depth of 1-1/2 in (40 mm) via mounting holes
- Compatible recessed housings - RF401, RF402, RF405 series
- Built-in on board driver with 40 mA output and 100 to 135 VAC input
- Quick-connect push-in terminals for fast and easy wiring
- -30 to 40 deg C operating temperature
- Fire-rated when used in a fire-rated octagon box
