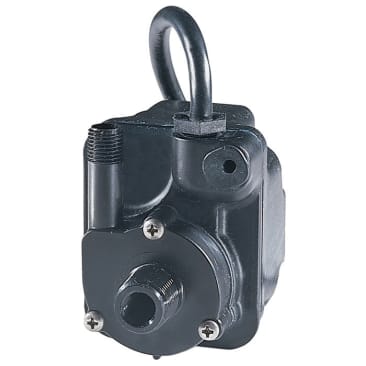

LITTLE GIANT 518087 PUMP 1-EA-42
MFR Part #: 518087
SKU #: 0383004
Brand: Little Giant®
UPC: 010121180871
Little Giant® 518087 1-EA-42 Direct Drive Epoxy Encapsulated Small Submersible Pump, 170 gph Flow Rate, 1/2 in MNPT, 1/4 in FNPT Inlet x 1/4 in MNPT Outlet, 1/125 hp, Glass Filled Polyester
Water transfer or recirculation, water displays and machine tool coolants
cCSAus Certified | UL Listed
Product Details
Attributes
Features
Resources
Little Giant® Submersible Pump, Direct Drive Epoxy Encapsulated Small, Series: 1-EA-42, 170 gph Flow Rate, 1/2 in MNPT, 1/4 in FNPT Inlet, 1/4 in MNPT Outlet, 1/125 hp, 115 V, 0.6 A, 60 Hz Frequency, 3 psi Maximum, Nylon Impeller, 120 deg F, Glass Filled Polyester, 3.75 in L x 2.75 in W x 3.38 in H Dimensions
Country Of Origin:
Mexico
Flow Rate:
170 gph
Horsepower:
1/125 hp
Voltage Rating:
115 V
Amperage Rating:
.6 A
Dimensions:
3.75 in L x 2.75 in W x 3.38 in H
Frequency Rating:
60 Hz
Impeller Type:
Nylon
Inlet Size:
1/2 in MNPT, 1/4 in FNPT
Material:
Glass Filled Polyester
Maximum Pressure:
3 psi
Outlet Size:
1/4 in MNPT
Series:
1-EA-42
Temperature Rating:
120 deg F
Type:
Direct Drive Epoxy Encapsulated Small
- 1/125 hp epoxy encapsulated motor
- Glass-filled polyester housing
- Epoxy coated cast aluminum cover
- Nylon volute
- Fluoroelastomer (FKM) shaft seal
- Thermal overload protection
Product Details
Little Giant® Submersible Pump, Direct Drive Epoxy Encapsulated Small, Series: 1-EA-42, 170 gph Flow Rate, 1/2 in MNPT, 1/4 in FNPT Inlet, 1/4 in MNPT Outlet, 1/125 hp, 115 V, 0.6 A, 60 Hz Frequency, 3 psi Maximum, Nylon Impeller, 120 deg F, Glass Filled Polyester, 3.75 in L x 2.75 in W x 3.38 in H Dimensions
Attributes
Country Of Origin: Mexico
Flow Rate: 170 gph
Horsepower: 1/125 hp
Voltage Rating: 115 V
Amperage Rating: .6 A
Dimensions: 3.75 in L x 2.75 in W x 3.38 in H
Frequency Rating: 60 Hz
Impeller Type: Nylon
Inlet Size: 1/2 in MNPT, 1/4 in FNPT
Material: Glass Filled Polyester
Maximum Pressure: 3 psi
Outlet Size: 1/4 in MNPT
Series: 1-EA-42
Temperature Rating: 120 deg F
Type: Direct Drive Epoxy Encapsulated Small
Features
- 1/125 hp epoxy encapsulated motor
- Glass-filled polyester housing
- Epoxy coated cast aluminum cover
- Nylon volute
- Fluoroelastomer (FKM) shaft seal
- Thermal overload protection
