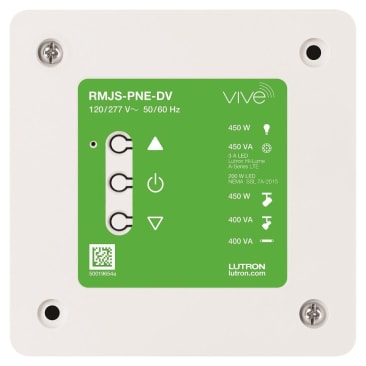

LUTRON RMJS-PNE-DV VIVE POWER PAK PHASE DIM MODULE
MFR Part #: RMJS-PNE-DV
SKU #: 1237323
Brand: Lutron®
UPC: 784276286787
Lutron® RMJS-PNE-DV RMJS-PNE Phase Select Dimming Module, 120/277 V
1 Year
For Lighting Control
cULus 508 Listed | Complies with the limits for a Class B device | pursuant to IC and FCC rules | Complies with requirements for use in other spaces used for environmental air (plenums) per NEC 2014 300.22(C)(3) | Listed in accordance to CAN /ULC S142 standard method of fire test for heat and visible smoke release for discrete products | NEMA SSL 7A-2015 | NOM
Product Details
Attributes
Features
Resources
Lutron®, RMJS-PNE-DV, Phase Select Dimming Module, Series: RMJS-PNE, 120/277 V, 0 to 40 deg C, 0 to 90% Non-Condensing Humidity, 4.53 in H x 4.53 in W x 0.46 in D Dimensions
Dimensions:4.53 in H x 4.53 in W x 0.46 in D
Humidity:0 to 90% Non-Condensing
Series:RMJS-PNE
Temperature Rating:0 to 40 deg C
Voltage Rating:120/277 V
- Receives wireless inputs from up to 10 Pico remote controls, 10 Radio Powr Savr occupancy / vacancy sensors and 1 Radio Powr Savr daylight sensor
- Utilizes Lutron Clear Connect - Type A RF
- Buttons on the PowPak module provide override control
- Power failure memory automatically returns the outputs to the levels they were set to prior to a power outage
- LEDs on the PowPak module provide diagnostic information
- RTISS-ICM technology is able to withstand high inrush LEDs, bulb blowouts and direct shorts
- Integral protection for common temporary overcurrent and over-voltage conditions
- Configurable high- and low-end trim
- RTISS technology compensates for incoming line variations such as frequency shifts (up to +/- 2% change in frequency / second), harmonics and line noise
- Operates in reversephase mode by default, Can be changed to forwardphase mode using button presses or the Vive app
Product Details
Lutron®, RMJS-PNE-DV, Phase Select Dimming Module, Series: RMJS-PNE, 120/277 V, 0 to 40 deg C, 0 to 90% Non-Condensing Humidity, 4.53 in H x 4.53 in W x 0.46 in D Dimensions
Attributes
Dimensions: 4.53 in H x 4.53 in W x 0.46 in D
Humidity: 0 to 90% Non-Condensing
Series: RMJS-PNE
Temperature Rating: 0 to 40 deg C
Voltage Rating: 120/277 V
Features
- Receives wireless inputs from up to 10 Pico remote controls, 10 Radio Powr Savr occupancy / vacancy sensors and 1 Radio Powr Savr daylight sensor
- Utilizes Lutron Clear Connect - Type A RF
- Buttons on the PowPak module provide override control
- Power failure memory automatically returns the outputs to the levels they were set to prior to a power outage
- LEDs on the PowPak module provide diagnostic information
- RTISS-ICM technology is able to withstand high inrush LEDs, bulb blowouts and direct shorts
- Integral protection for common temporary overcurrent and over-voltage conditions
- Configurable high- and low-end trim
- RTISS technology compensates for incoming line variations such as frequency shifts (up to +/- 2% change in frequency / second), harmonics and line noise
- Operates in reversephase mode by default, Can be changed to forwardphase mode using button presses or the Vive app
