RAB 080559 RHB1-LED150-B-5K-BLK-DIM-PCL
Product Details
Attributes
Features
Resources

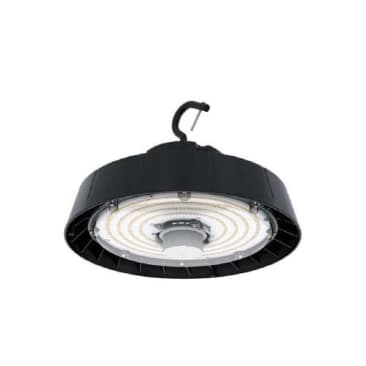

RAB® Indoor High Bay Fixture, Standard, Series: RHB1-LED150, 120 to 277 V, 0.569/0.656/0.757/1.313 A, 150 W Lamp, 147.3 Lumens/W Light Output, 50000 hr Average Life, 5000 K Color Temperature, 80 CRI, 0 to 10 VDC Dimming Ballast, Clear Polycarbonate Lens, 22030 Lumens, IP65 Enclosure, Pendant/Suspension/Yoke Mounting, Die-Cast Aluminum Housing Material, Matte Black Housing Finish, 11.395 in Dia x 8.132 in H Dimensions
DLC 5 approved round high bay fixtures ideal for industrial, manufacturing and factory environments. Ruggedly designed, IP65 rated and easy to install with mounting hook.
- Ruggedly designed with die-cast aluminum housing and clear polycarbonate lens
- Improved heat sink design - large heat sink with space between LEDs and driver to extend fixture lifespan
- Fixture can be suspended, pendant or yoke mounted
- All units come with a mounting hook for easy installation
- Standard unit comes with a shorting cap that can be removed to install the motion sensor on the field
- 1.313 A at 120 V, 0.757 A at 208 V, 0.656 A at 240 V, 0.569 A at 277 V current rating
Product Details
RAB® Indoor High Bay Fixture, Standard, Series: RHB1-LED150, 120 to 277 V, 0.569/0.656/0.757/1.313 A, 150 W Lamp, 147.3 Lumens/W Light Output, 50000 hr Average Life, 5000 K Color Temperature, 80 CRI, 0 to 10 VDC Dimming Ballast, Clear Polycarbonate Lens, 22030 Lumens, IP65 Enclosure, Pendant/Suspension/Yoke Mounting, Die-Cast Aluminum Housing Material, Matte Black Housing Finish, 11.395 in Dia x 8.132 in H Dimensions
DLC 5 approved round high bay fixtures ideal for industrial, manufacturing and factory environments. Ruggedly designed, IP65 rated and easy to install with mounting hook.
Attributes
Features
- Ruggedly designed with die-cast aluminum housing and clear polycarbonate lens
- Improved heat sink design - large heat sink with space between LEDs and driver to extend fixture lifespan
- Fixture can be suspended, pendant or yoke mounted
- All units come with a mounting hook for easy installation
- Standard unit comes with a shorting cap that can be removed to install the motion sensor on the field
- 1.313 A at 120 V, 0.757 A at 208 V, 0.656 A at 240 V, 0.569 A at 277 V current rating
