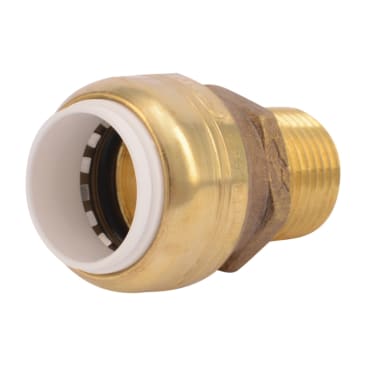

SHARKBITE UIP120 1/2 PVC X 1/2IN MNPT MALE CONNECTOR
MFR Part #: UIP120
SKU #: 1120519
Brand: RWC | Sharkbite®
UPC: 697285021006
Sharkbite® UIP120 Male Adapter, 1/2 in Nominal, PVC x MNPT End Style, Brass, Import
2 years Limited
ASTM F876/F877|ASSE 1061/NSF 61|AWWA C904|cUPC Listed|CSA B137.5|IAPMO Listed|IPC Listed|NSF/ANSI 372
Product Details
Attributes
Features
Resources
Sharkbite® Male Adapter, Adapter Fitting/Connector, 1/2 in Nominal, PVC x MNPT End Style, 200 psi Pressure, 200 deg F, Brass, 1.85 in L Dimensions, Import
The SharkBite® PVC x MNPT Adapter allows you to make a joint to Schedule 40, 80 or 120 PVC pipe using a push-fit connection and gives you a Male NPT Adapter on the opposite end.
Connection Type:
PVC x MNPT
Country Of Origin:
CHINA
Fitting/Connector Type:
Adapter
Nominal Size:
1/2 in
Pressure Rating:
200 psi
Dimensions:
1.85 in L
Domestic/Import:
Import
Material:
Brass
Temperature Rating:
200 deg F
- Instant push-fit connection for increased ease-of-use: no soldering, clamps or unions required
- Fitting certified to 200 psi and 200 deg F (93 deg c): Proven durability and quality
- Tan collar fits copper tubing and CTS CPVC and PEX - Connect all three type in any combination
- White collar fits schedule 40, 80 and 120 PVC pipe and also fits schedule 40 and 80 CVPC not for use on galvanized iron pipe
- Integral tube liner for PEX Installations - Integrated design means no loose components, ensures secure, reliable connection
- Design certified and agency listed inspector friendly, peace of mind
- Easy to disconnect and reusable remove pipe
- Design certified to NSF/ANSI 61 and NSF/ASNI 14 product standard for use in potable water and hydronic heating water distribution: quality engineered and manufactured
- Approved to be used underground and behind walls without access panels designed for hydronic heating as well as potable water distribution
- No primer or glue required, no waiting for glue to dry means quicker installation time for PVC pipe
- DZR lead free brass body, EPDM O-ring, stainless steel grab ring, veradel tube support liner
Product Details
Sharkbite® Male Adapter, Adapter Fitting/Connector, 1/2 in Nominal, PVC x MNPT End Style, 200 psi Pressure, 200 deg F, Brass, 1.85 in L Dimensions, Import
The SharkBite® PVC x MNPT Adapter allows you to make a joint to Schedule 40, 80 or 120 PVC pipe using a push-fit connection and gives you a Male NPT Adapter on the opposite end.
Attributes
Connection Type: PVC x MNPT
Country Of Origin: CHINA
Fitting/Connector Type: Adapter
Nominal Size: 1/2 in
Pressure Rating: 200 psi
Dimensions: 1.85 in L
Domestic/Import: Import
Material: Brass
Temperature Rating: 200 deg F
Features
- Instant push-fit connection for increased ease-of-use: no soldering, clamps or unions required
- Fitting certified to 200 psi and 200 deg F (93 deg c): Proven durability and quality
- Tan collar fits copper tubing and CTS CPVC and PEX - Connect all three type in any combination
- White collar fits schedule 40, 80 and 120 PVC pipe and also fits schedule 40 and 80 CVPC not for use on galvanized iron pipe
- Integral tube liner for PEX Installations - Integrated design means no loose components, ensures secure, reliable connection
- Design certified and agency listed inspector friendly, peace of mind
- Easy to disconnect and reusable remove pipe
- Design certified to NSF/ANSI 61 and NSF/ASNI 14 product standard for use in potable water and hydronic heating water distribution: quality engineered and manufactured
- Approved to be used underground and behind walls without access panels designed for hydronic heating as well as potable water distribution
- No primer or glue required, no waiting for glue to dry means quicker installation time for PVC pipe
- DZR lead free brass body, EPDM O-ring, stainless steel grab ring, veradel tube support liner
